SELECT A DIAGRAM

Diagram for 01 - Front View
01 - Front View

Diagram for 02 - Rear View
02 - Rear View

Diagram for 03 - Control Center Shroud
03 - Control Center Shroud

Diagram for 04 - Control Center
04 - Control Center

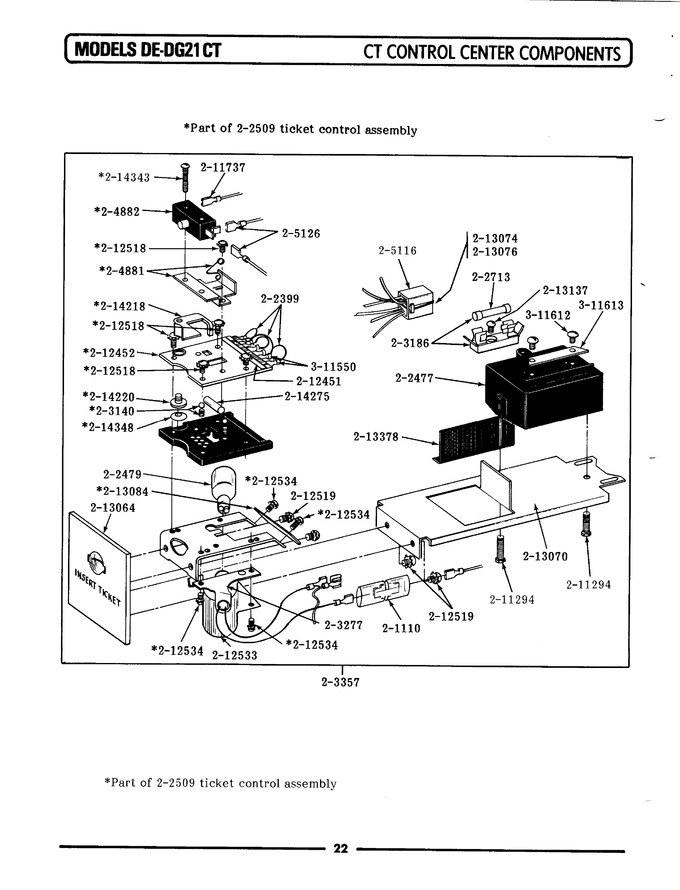

Diagram for 05 - Control Center Components
05 - Control Center Components

Diagram for 06 - Door Assembly
06 - Door Assembly

Diagram for 07 - Front Panel-rear View
07 - Front Panel-rear View

Diagram for 08 - Front Panel\door
08 - Front Panel\door

Diagram for 09 - Front Panel\door (series 02)
09 - Front Panel\door (series 02)

Diagram for 10 - Tumbler Front\lint Screen
10 - Tumbler Front\lint Screen

Diagram for 11 - Lint Screen, Tumbler (front & Back)
11 - Lint Screen, Tumbler (front & Back)

Diagram for 12 - Inlet Duct & Heater Assembly
12 - Inlet Duct & Heater Assembly

Diagram for 13 - Motor, Blower, Base Frame & Thermostats
13 - Motor, Blower, Base Frame & Thermostats

Diagram for 14 - Installation Accessories
14 - Installation Accessories


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 Y201110 Wire Connector 00 Appelez-nous -
002 NLA Jumper Wire (black) 00 Appelez-nous -
003 202477 Electronic Control 00 Appelez-nous -
004 202479 Lamp For Ticket Control 00 Appelez-nous -
005 202509 Ticket Control 00 Appelez-nous -
006 WP22001555 Fuse   (Replaces: 202713) 00 In-Stock Immediately $ 27.33

007 203140 Contact Ball Kit 00 In-Stock Immediately $ 25.88

008 NLA Fuse Block With Fuse 00 Appelez-nous -
009 NLA Lamp Socket With Bracket 00 Appelez-nous -
010 NLA Ticket Receiver Assembly 00 Appelez-nous -
011 204881 Cam Plate Assembly 00 Appelez-nous -
012 204882 Switch For Ticket Control 00 Appelez-nous -
013 NLA Double Melt Clip W/deflecto 00 Appelez-nous -
014 NLA Harness For Ticket Control 00 Appelez-nous -
015 NLA Spade Connector 00 Appelez-nous -
016 WP248562 Wire Connector   (Replaces: 211737) 00 Special Order $ 6.95

017 WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04

018 NLA Overlay For Circuit Board 00 Appelez-nous -
019 212452 Circuit Board 00 Appelez-nous -
020 NLA Sems Screw (no.4-40 X 1/2 Inc) 00 Appelez-nous -
021 WP488234 Screw, No.8-32 X 1/4 Inch   (Replaces: 212519) 00 Special Order $ 6.07

022 212533 Shield For Heat Lamp 00 Special Order $ 11.78

023 NLA Screw, Shield To Control 00 Appelez-nous -
024 NLA Front Plate F/ticket Contro 00 Appelez-nous -
025 NLA Bracket For Ticket Assembly 00 Appelez-nous -
026 213074 Pin Receptacle For Plug 00 Appelez-nous -
027 NLA Pin For Plug 00 Appelez-nous -
028 NLA Ticket Deflector 00 Appelez-nous -
029 NLA Screw (no.6 X 1/4 Inch) 00 Appelez-nous -
030 NLA Shield 00 Appelez-nous -
031 214218 Switch Lever 00 Special Order $ 80.43

032 214220 Adjustment Thumb Wheel 00 Appelez-nous -
033 214275 Roller For Cam 00 Appelez-nous -
034 NLA Screw 00 Appelez-nous -
035 NLA Spring Washer 00 Appelez-nous -
036 Y311550 Spade (miniature) 00 Appelez-nous -
037 311612 Cover For Circuit Board 00 Appelez-nous -
038 311613 Screw - Circuit Board Cover 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for DE21CT
