SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Control Center Shroud


04 - Control Center


05 - Control Center Components

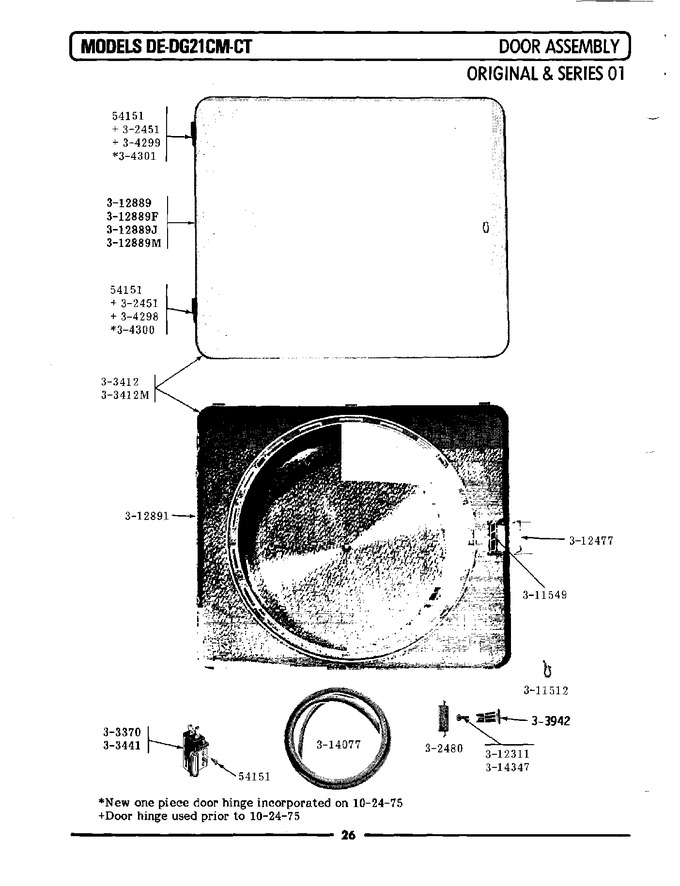

06 - Door Assembly


07 - Front Panel-rear View


08 - Front Panel\door


09 - Front Panel\door (series 02)


10 - Tumbler Front\lint Screen


11 - Lint Screen, Tumbler (front & Back)


12 - Inlet Duct & Heater Assembly


13 - Motor, Blower, Base Frame & Thermostats


14 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Screw, No.4-40 X 1/4	00	Appelez-nous	-
002	NLA		Hinge Assembly----n	00	Appelez-nous	-
003	NLA		Latch	00	Appelez-nous	-
004	Y303370		Door Switch	00	Appelez-nous	-
005	NLA		Door Complete-white	00	Appelez-nous	-
006	Y304298		Hinge - Lower	00			$ 21.08
007	NLA		Hinge - Upper	00	Appelez-nous	-
008	NLA		Hinge - Lower	00	Appelez-nous	-
009	NLA		Hinge - Upper	00	Appelez-nous	-
010	NLA		Knob And Screw	00	Appelez-nous	-
011	NLA		Fastener	00	Appelez-nous	-
012	NLA		Wire Clip	00	Appelez-nous	-
013	NLA		Screw----na	00	Appelez-nous	-
014	NLA		Magnetic Latch Retainer	00	Appelez-nous	-
015	NLA		Door Panel-white	00	Appelez-nous	-
016	Y312891		Door Liner - Inner Half	00	Appelez-nous	-
017	314077		Door Seal	00	Appelez-nous	-
018	NLA		Screw For Door Knob----na	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
