SELECT A DIAGRAM

02 - Door

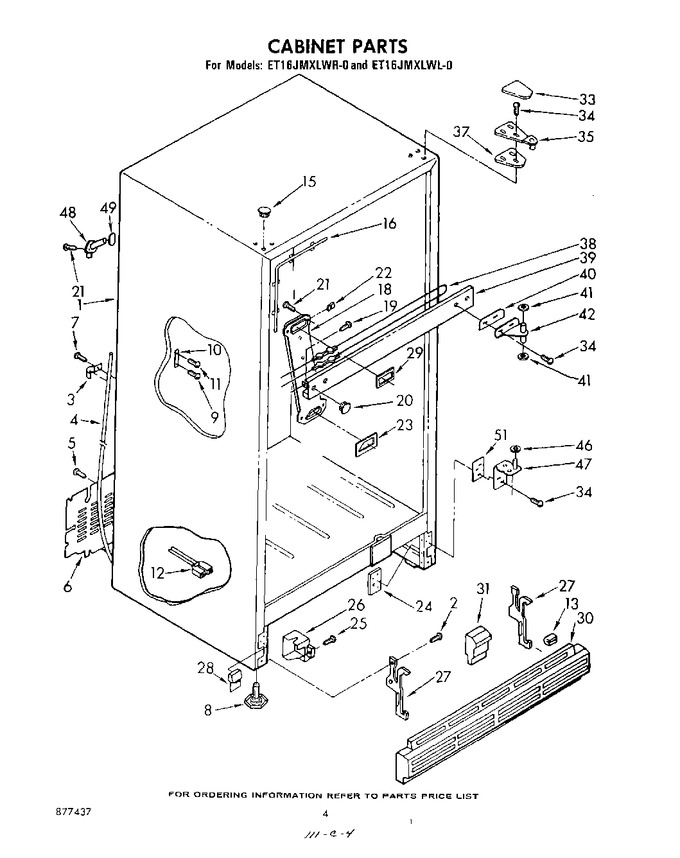

03 - Cabinet


04 - Liner


05 - Shelf


06 - Breaker And Partition


07 - Unit


08 - Icemaker , Not Illustrated And Opti


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
3	836077		Clamp		Appelez-nous	-
4	8316810		Tube, Drain   (Replaces: 509638)				$ 107.76
5	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
6	850639		Cover		Appelez-nous	-
7	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.07
8	836392		Leveler (2)		Appelez-nous	-
9	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 9.79
10	547603		Strap, Ground		Appelez-nous	-
11	488684		Screw, 8-32 X 1-1/2		Appelez-nous	-
12	549447		Wire Assembly (water Valve)		Appelez-nous	-
13	546131		Bumper (2)		Appelez-nous	-
15	989875		Plug, Hole (3) (coffee)		Appelez-nous	-
15	989876		Plug, Hole (3) (golden Harvest)		Appelez-nous	-
15	989195		Plug, Hole (3) (almond)		Appelez-nous	-
15	842031		Plug, Hole (3) (white)		Appelez-nous	-
15	989877		Plug, Hole (3) (new Avocado)		Appelez-nous	-
16	531670		Stile, Heater		Appelez-nous	-
18	934057		Duct, Air		Appelez-nous	-
19	488624		Screw, 8 X 3/8		Appelez-nous	-
19	487470		Screw (repair)		Appelez-nous	-
20	989881		Plug, Hole (2) (coffee)		Appelez-nous	-
20	989193		Plug, Hole (2) (almond)		Appelez-nous	-
20	989882		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
20	835974		Plug, Hole (2) (white)		Appelez-nous	-
20	989883		Plug, Hole (2) (new Avocado)		Appelez-nous	-
21	WP98165		Screw, 8 X 5/8 (3)   (Replaces: 488401)				$ 7.20
22	488564		Nut, Speed (4)		Appelez-nous	-
23	934058		Gasket Outlet		Appelez-nous	-
24	836162		Plate, Tap		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
26	549948		Box, Junction		Appelez-nous	-
27	844614		Support, Grille (2)		Appelez-nous	-
28	934569		Fill, Grille		Appelez-nous	-
29	836565		Gasket Inlet		Appelez-nous	-
30	934567		Grille		Appelez-nous	-
31	836372		Insert, Air Baffle		Appelez-nous	-
33	989194		Cover, Hinge (almond)		Appelez-nous	-
33	842010		Cover, Hinge (white)		Appelez-nous	-
33	989895		Cover, Hinge (coffee)		Appelez-nous	-
33	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
33	989896		Cover, Hinge (golden Harvest)		Appelez-nous	-
34	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 7.07
34	488949		Screw (repair)		Appelez-nous	-
35	842039		Hinge & Shim (top)		Appelez-nous	-
37	836151		Shim, Top Hinge (.030)		Appelez-nous	-
38	989254		Heater, Mullion		Appelez-nous	-
39	989906		Rail, Center (golden Harvest)		Appelez-nous	-
39	836066		Rail, Center (white)		Appelez-nous	-
39	989905		Rail, Center (coffee)		Appelez-nous	-
39	989907		Rail, Center (new Avocado)		Appelez-nous	-
39	989191		Rail, Center (almond)		Appelez-nous	-
40	836155		Shim (.030)		Appelez-nous	-
41	WP488296		Washer, 11/64 (2)   (Replaces: 488296)				$ 6.47
42	836153		Hinge & Shim (center)		Appelez-nous	-
46	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.12
47	836687		Hinge, Bottom (l.h. Models)		Appelez-nous	-
47	836686		Hinge, Bottom (r.h. Models)		Appelez-nous	-
48	942546		Fitting, Drain		Appelez-nous	-
49	940121		Gasket, Seal		Appelez-nous	-
51	836196		Shim (bottom) (.030)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
