SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner


05 - Shelf

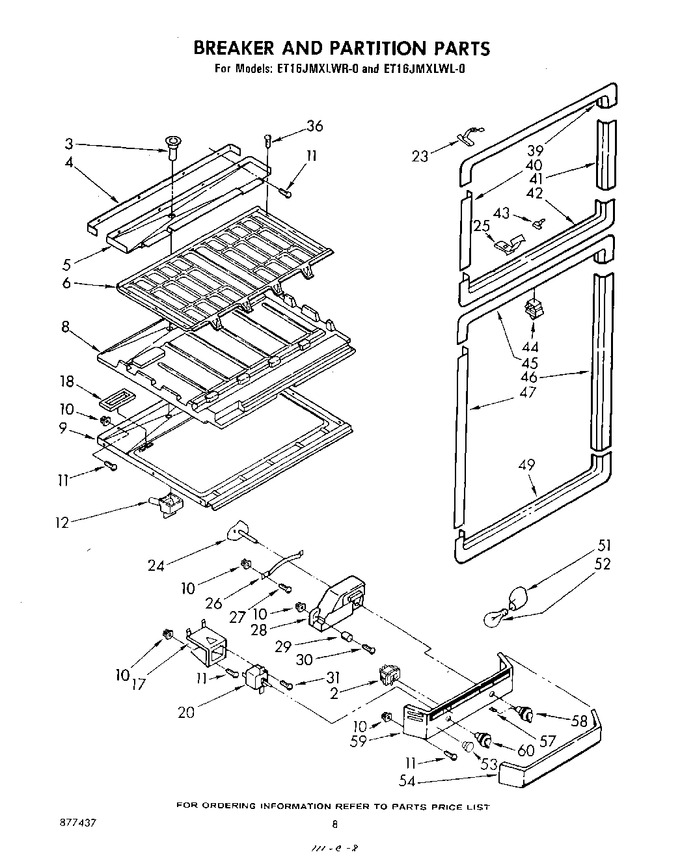

06 - Breaker And Partition


07 - Unit


08 - Icemaker , Not Illustrated And Opti


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	938049		Switch, Toggle		Appelez-nous	-
3	841770		Fitting, Drain Pan		Appelez-nous	-
4	843289		Gasket, Drain Pan		Appelez-nous	-
5	836198		Pan, Evaporator Drain		Appelez-nous	-
6	848421		Separator (top)		Appelez-nous	-
8	991171		Insulation, Separator		Appelez-nous	-
9	981737		Separator (bottom)		Appelez-nous	-
10	842339		Grommet		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
12	943918		Cup, Drain		Appelez-nous	-
17	848446		Bracket, Thermostat		Appelez-nous	-
18	981725		Gasket, Air Return (2)		Appelez-nous	-
20	WP819470		Thermostat & Barrier   (Replaces: 851612)				$ 141.39
23	845807		Clip, Wrapper (23)		Appelez-nous	-
24	836247		Damper, Air		Appelez-nous	-
25	836090		Clip, Mullion Breaker (2)		Appelez-nous	-
26	836493		Retainer, Damper		Appelez-nous	-
27	488624		Screw, 8 X 3/8		Appelez-nous	-
28	836487		Air Diffuser		Appelez-nous	-
29	836667		Spacer (2)		Appelez-nous	-
30	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
31	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 9.65
36	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488320)			Immediately	$ 7.01
39	836178		Breaker, Freezer (top)		Appelez-nous	-
40	836031		Breaker, Freezer (l.s.)		Appelez-nous	-
41	836027		Breaker, Freezer (r.s.)		Appelez-nous	-
42	836222		Breaker, Mullion (top)		Appelez-nous	-
43	534365		Clip (6)				$ 13.35
44	W11384469		Switch, Light (2)   (Replaces: 549702)			Immediately	$ 33.51
45	836177		Breaker, Mullion (bottom)		Appelez-nous	-
46	836028		Breaker, Refrigerator R.s.		Appelez-nous	-
47	836032		Breaker, Refrigerator L.s.		Appelez-nous	-
49	836176		Breaker, Refrigerator (bottom)		Appelez-nous	-
51	4387478		Socket   (Replaces: 851067)			Immediately	$ 99.14
52	8009		Bulb   (Replaces: 527949)			Immediately	$ 16.80
53	534927		Plug, Hole		Appelez-nous	-
54	983910		Lens, Light		Appelez-nous	-
57	837444		Knob, Retainer		Appelez-nous	-
58	837445		Knob, Control (includes Illus. 57)		Appelez-nous	-
59	942214		Panel, Control		Appelez-nous	-
60	836482		Knob, Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
