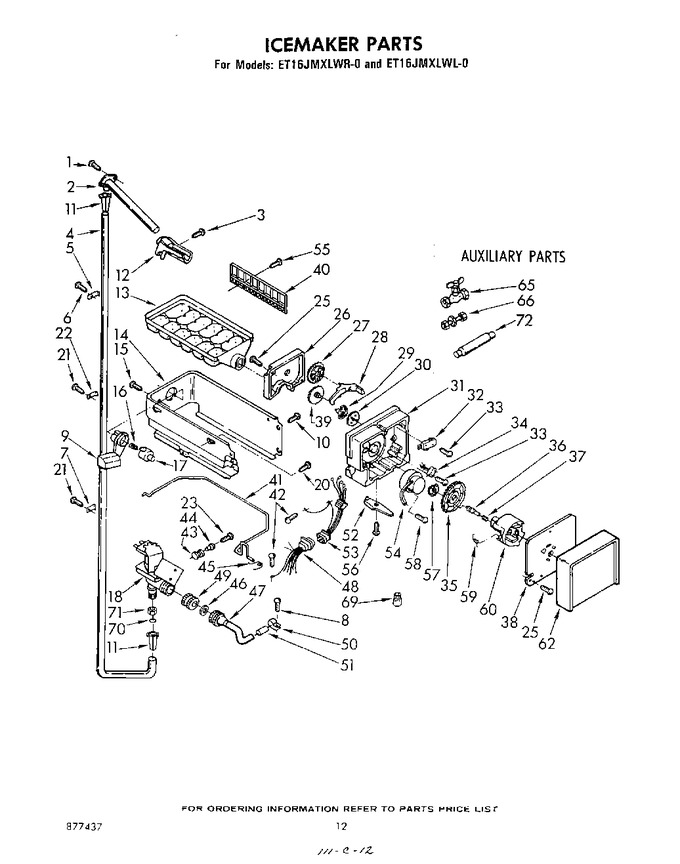

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 7.20
2	WP2196157		Fitting, Tube   (Replaces: 842896)			Immediately	$ 10.79
3	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 7.01
4	W10823511		Tube   (Replaces: 653415)			Immediately	$ 29.17
5	WP488878		Clamp, Tube   (Replaces: 488878)				$ 10.44
6	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 9.65
7	836472		Clamp, Tube (2)		Appelez-nous	-
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
9	627521		Support & Cam		Appelez-nous	-
10	488203		Screw, 8-18 X 5/8		Appelez-nous	-
11	4387491		Insert, Plastic (2)   (Replaces: 841707)				$ 7.06
12	842895		Collar, Inlet		Appelez-nous	-
13	627500		Tray, Ice		Appelez-nous	-
14	627538		Frame		Appelez-nous	-
15	488867		Screw, 8-18 X 1/2		Appelez-nous	-
16	627522		Spring, Bearing		Appelez-nous	-
17	627523		Bearing		Appelez-nous	-
18	4318047		Valve, Solenoid   (Replaces: 627558)			Immediately	$ 66.68
20	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.01
21	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.07
22	836077		Tube Clamp		Appelez-nous	-
23	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
25	W11693756		Screw, 8-18 X 5/8   (Replaces: 488269)			Immediately	$ 12.65
26	627519		Cover, Gear		Appelez-nous	-
27	627517		Gear & Cam		Appelez-nous	-
28	627518		Lever, Cam				$ 21.92
29	627516		Cam & Pinion		Appelez-nous	-
30	627736		Gear		Appelez-nous	-
31	627530		Housing, Control		Appelez-nous	-
32	16802		Switch, Timer   (Replaces: 627512)			Immediately	$ 6.34
33	488360		Screw, 4-24 X 3/4		Appelez-nous	-
34	627727		Switch, Water Valve		Appelez-nous	-
35	627504		Gear, Drive		Appelez-nous	-
36	627509		Pin, Drive		Appelez-nous	-
37	627508		Spring		Appelez-nous	-
38	627513		Plate		Appelez-nous	-
39	627735		Gear & Pinion		Appelez-nous	-
40	981270		Package Guard		Appelez-nous	-
41	627607		Arm, Shutoff		Appelez-nous	-
42	488542		Screw, Ground		Appelez-nous	-
43	510723		Grommet (2)		Appelez-nous	-
44	510906		Eyelet Spacer (2)		Appelez-nous	-
45	627526		Spring, Shutoff Arm		Appelez-nous	-
46	WP16123		Washer   (Replaces: 488292)				$ 6.93
47	836200		Tube, Inlet Valve		Appelez-nous	-
48	482254		Harness (cabinet)		Appelez-nous	-
49	537588		Nut, Valve		Appelez-nous	-
50	510716		Clamp Tube		Appelez-nous	-
51	WP2158826		Dampener   (Replaces: 836074)				$ 1.56
52	627524		Lever, Shutoff		Appelez-nous	-
53	627527		Harness (ice Maker)		Appelez-nous	-
54	627726		Motor		Appelez-nous	-
55	WP965173		Screw, 8 X 5/16   (Replaces: 488027)			Immediately	$ 9.65
56	WP488787		Screw, 8-18 X 1/2   (Replaces: 488787)				$ 9.52
57	627503		Gear, Timer		Appelez-nous	-
58	488985		Screw, 6-20 X 3/8		Appelez-nous	-
59	627507		Spring		Appelez-nous	-
60	627506		Cam		Appelez-nous	-
62	936738		Cover, Front		Appelez-nous	-
65	541157		Valve, Shutoff (1/4`` X 1/4``)		Appelez-nous	-
66	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
69	227991		Nut, Wire		Appelez-nous	-
70	488794		Ring, ``o``		Appelez-nous	-
71	WP627018		Nut, Compression   (Replaces: 488810)				$ 9.87
72	877437		List, Parts		Appelez-nous	-
72	515393		Transformer (115-230 Volt)		Appelez-nous	-
72	943379		Service & Wiring Sheet		Appelez-nous	-
72	942912		Care & Use Guide		Appelez-nous	-
72	942913		Consumer Buy Guide		Appelez-nous	-
72	943003		Energy Guide		Appelez-nous	-
72	978488		Filter Kit		Appelez-nous	-
72	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
72	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
72	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 208.40
72	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
72	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
72	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
72	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
72	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
72	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
72	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
72	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
72	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
72	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
72	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
72	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
72	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
72	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
72	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
72	261889		Enamel, Avocado (1 Qt. Uncut)		Appelez-nous	-
72	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
72	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
72	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
72	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
72	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
72	833938		Kit, Terminal Connector				$ 7.26
72	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 80.69
