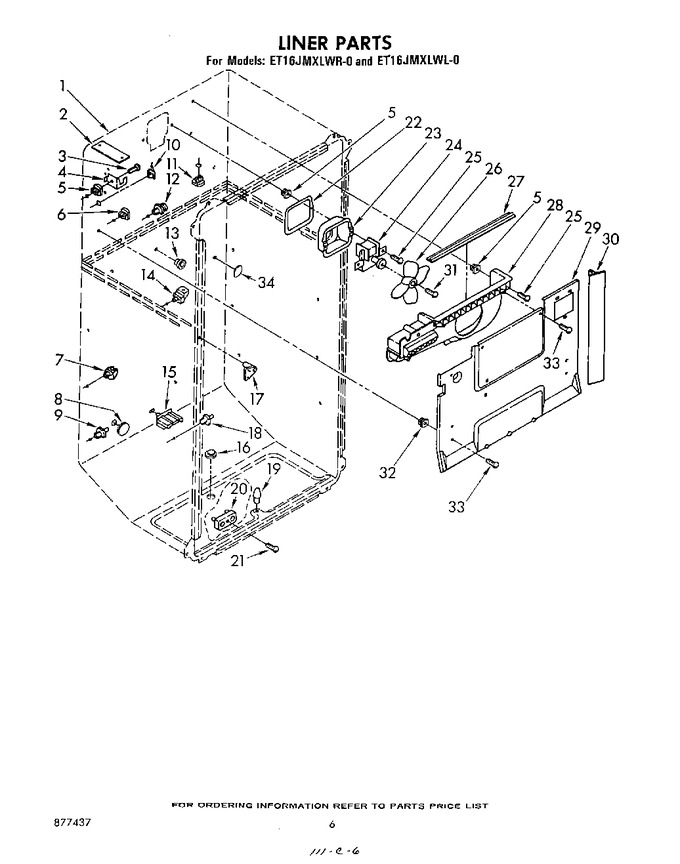

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	983360		Gasket, Tube Fitting		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	842825		Bracket, Wiring		Appelez-nous	-
5	842339		Grommet		Appelez-nous	-
6	502037		Grommet		Appelez-nous	-
7	523263		Stud, Saddle (r.s.) (2)		Appelez-nous	-
7	523264		Stud, Saddle (l.s.) (2)		Appelez-nous	-
8	519890		Hole Plug (2)		Appelez-nous	-
9	536475		Stud, Crisper Cover (2)				$ 7.28
10	850208		Retainer, Plug		Appelez-nous	-
11	538449		Grommet		Appelez-nous	-
12	842898		Stud (2)		Appelez-nous	-
13	851020		Grommet, Wiring		Appelez-nous	-
14	836374		Stud, Retainer (4)		Appelez-nous	-
15	836412		Stud, Crisper Support		Appelez-nous	-
16	835370		Drain Cover		Appelez-nous	-
17	836040		Spacer, Liner (2)		Appelez-nous	-
18	521878		Stud, Shelf (4)		Appelez-nous	-
19	836409		Post, Grommet		Appelez-nous	-
20	539760		Spacer, Liner (8)		Appelez-nous	-
21	488286		Screw, 10 X 13/16		Appelez-nous	-
22	836475		Gasket, Motor Cover		Appelez-nous	-
23	836474		Cover, Motor		Appelez-nous	-
24	482731		Motor, Fan   (Replaces: 548697)			Immediately	$ 71.15
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
26	WP1100938		Blade, Fan   (Replaces: 548041)				$ 79.08
27	984497		Sealing Gasket		Appelez-nous	-
28	842829		Scroll, Fan		Appelez-nous	-
29	984485		Cover, Evaporator		Appelez-nous	-
30	983997		Gasket, Cover (2) (10``)		Appelez-nous	-
30	981749		Gasket, Cover (2) (15-3/4``)		Appelez-nous	-
31	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
32	848445		Grommet (4)		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.01
34	943920		Grommet Drain Fitting		Appelez-nous	-
