SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner


05 - Shelf


06 - Breaker And Partition


07 - Unit


08 - Icemaker , Not Illustrated And Opti

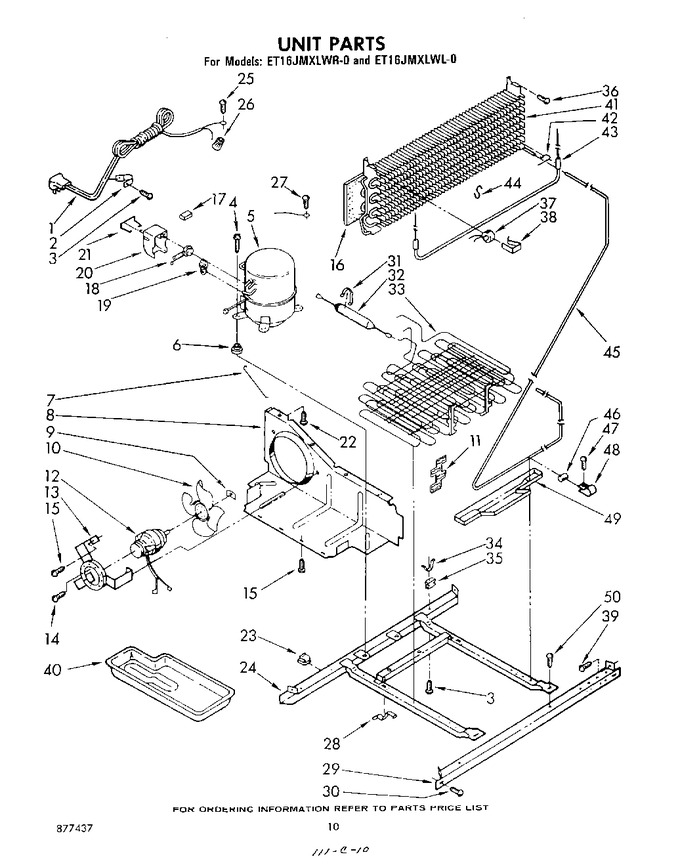

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-cord				$ 12.05
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	464082		Compressor		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
7	850156		Guard, Fan		Appelez-nous	-
8	850764		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 7.04
10	989524		Fan		Appelez-nous	-
11	987210		Spacer Condenser (4)		Appelez-nous	-
12	833697		Motor (includes Illus. 9 & 14)   (Replaces: 938164)			Immediately	$ 79.34
13	548695		Bracket, Motor		Appelez-nous	-
14	488868		Screw (use W/938164 Motor) (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	937289		Baffle, Evaporator		Appelez-nous	-
17	547272		Bumper		Appelez-nous	-
18	549041		Overload		Appelez-nous	-
19	989662		Relay		Appelez-nous	-
20	549945		Case, Relay		Appelez-nous	-
21	531318		Spring		Appelez-nous	-
22	489050		Screw, 8-32 X 1/2				$ 623.30
23	548745		Clip, Wire (2)		Appelez-nous	-
24	548655		Frame		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Nut, Wire		Appelez-nous	-
27	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	941699		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
33	481846		Condenser & Precooler		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	548737		Grommet (4)		Appelez-nous	-
36	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
37	WP4387489		Bimetal, Defrost   (Replaces: 934468)				$ 93.42
38	513584		Clamp		Appelez-nous	-
39	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488964)			Immediately	$ 7.01
40	842041		Tray, Evaporating				$ 64.92
41	938352		Evaporator		Appelez-nous	-
42	850721		Clip, Heater (2)		Appelez-nous	-
43	992930		Heater, Defrost		Appelez-nous	-
44	851358		Support, Heater		Appelez-nous	-
45	943336		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 19.04
48	510716		Clamp (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	978030		Valve, Access (3/4``)				$ 117.64
50	978026		Valve, Access (5/16``)			Immediately	$ 115.28
50	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
50	978028		Valve, Access (1/2)		Appelez-nous	-
50	978029		Valve Access (5/8``)				$ 93.85
50	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
