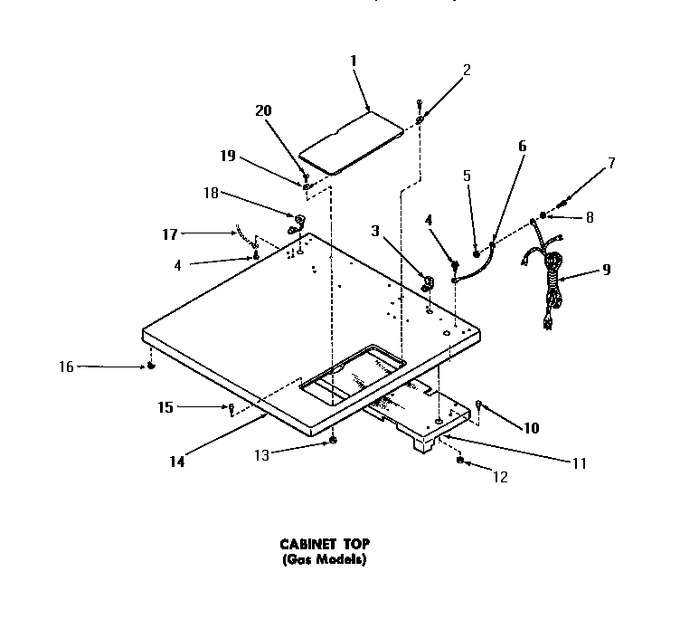

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52518W		Access Door, White		Appelez-nous	-
1	52518A		Access Door, Avocado		Appelez-nous	-
1	52518H		Xreplace		Appelez-nous	-
1	52518C		Access Door, Coppertone		Appelez-nous	-
2	51351		Hinge,rear		Appelez-nous	-
3	21903		Strain Relief		Appelez-nous	-
4	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
5	M0282009		Locknut   (Replaces: 23951)				$ 12.06
6	54300		Ground Wire, Green		Appelez-nous	-
7	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
8	03815		Lockwasher,no.10 Ext Shk				$ 3.34
9	51508		Power Cord		Appelez-nous	-
10	51355		Bumper		Appelez-nous	-
11	52614		Top Baffle Assembly		Appelez-nous	-
13	SM5038-12		Nut,nylon   (Replaces: 22678)			Immediately	$ 53.70
14	52503C		Cabinet Top, Coppertone		Appelez-nous	-
14	52503W		Cabinet Top, White		Appelez-nous	-
14	52503A		Cabinet Top, Avocado		Appelez-nous	-
14	52503H		Cabinet Top, Harvest Gold		Appelez-nous	-
15	53445		Bumper		Appelez-nous	-
16	23007		Caged Nut		Appelez-nous	-
17	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
18	Sub. To D510402P		Relief,strain   (Replaces: 52113)		Appelez-nous	-
19	51350		Hinge,front		Appelez-nous	-
20	03630		Screw,6-32 X 3/8 Round		Appelez-nous	-
	NOTE:		This Assembly Will Be Supplied Whenever 52963gr Lint Screen Housing Or 53058gr Inner Door Panel Is Ordered.		Appelez-nous	-
NI	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
