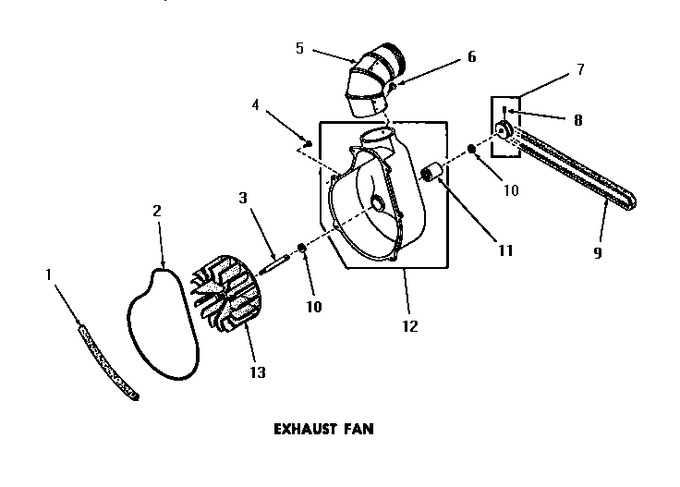

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	51790		Seal		Appelez-nous	-
2	51791		Gasket,housing		Appelez-nous	-
3	53519		Exhaust Fan Shaft				$ 46.74
4	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
5	Y0052707		Switch, Light (blk)		Appelez-nous	-
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	53521		Assy,pulley		Appelez-nous	-
8	02771		Screw,1/4-20x3/8 Hex S		Appelez-nous	-
9	51994		Belt				$ 21.30
10	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
11	51991		Bearing				$ 30.88
12	51946		Housing,blower		Appelez-nous	-
13	90585		Impeller		Appelez-nous	-
