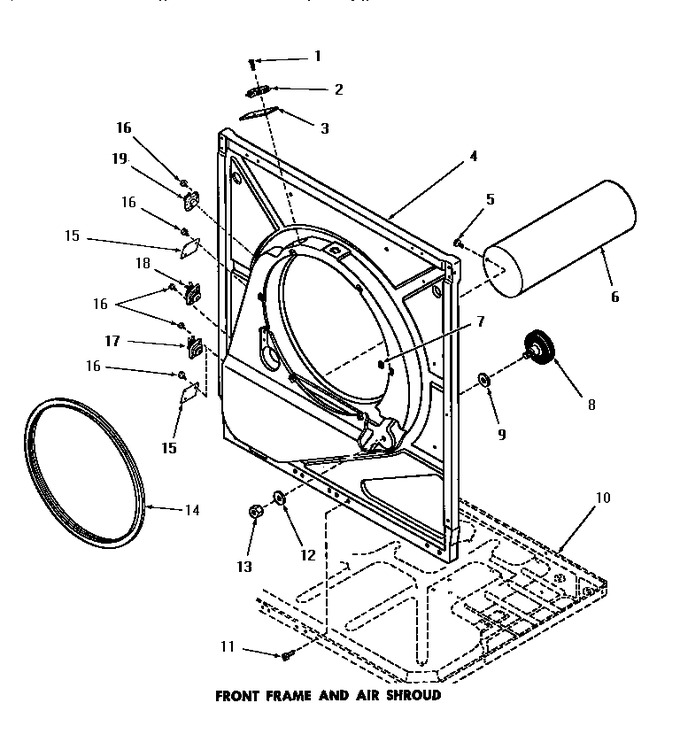

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Sub. To D510158		Screw,6b-20 X 7/8 Hex   (Replaces: 51783)		Appelez-nous	-
2	Y51143		Switch		Appelez-nous	-
3	52112		Insulation		Appelez-nous	-
4	51850		Front Frame And Air Shroud		Appelez-nous	-
5	52150		Screw, Thermostat		Appelez-nous	-
6	51821		Exhaust Duct		Appelez-nous	-
7	52865		Speed Nut		Appelez-nous	-
8	53555		Drum Roller		Appelez-nous	-
9	52123		Washer		Appelez-nous	-
10	Y00000000		See Note Frame Base		Appelez-nous	-
11	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
12	52122		Washer		Appelez-nous	-
13	52124		Nut		Appelez-nous	-
14	51798		Gasket		Appelez-nous	-
15	52550		Cover Plate		Appelez-nous	-
16	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
17	51880		Thermostat				$ 25.05
18	LS3-135		Thermostat   (Replaces: 52393)				$ 21.92
19	53708		Thermostat		Appelez-nous	-
