SELECT A DIAGRAM

01 - 143p3 Rear Exhaust Deflector Kit


02 - 159p3 Side Exhaust Deflector Kit


03 - 160p3 Bottom Exhaust Deflector Kit


04 - 20600 Vent Kit


05 - 53377 Gas Valve (natural/mixed Gas)


06 - 54488 Gas Valve (natural/mixed Gas)


07 - Cabinet Top


08 - Clothes Drum


09 - Control Hood

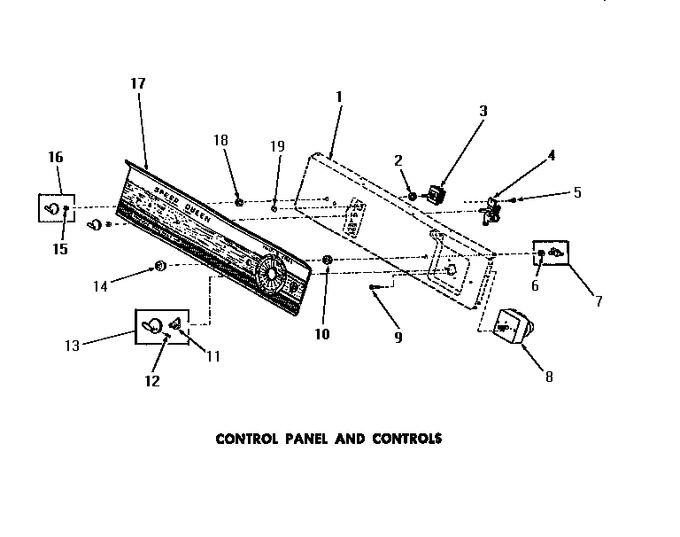

10 - Control Panel & Controls


11 - Door Release


12 - Drum Light & Cover Plate


13 - Drum Light & Cover Plate


14 - Exhaust Fan


15 - Free Standing Pilot Bnr & Bnr Conv Kits


16 - Free Standing Pilot Bnr & Conv Kits


17 - Front Frame & Air Shroud


18 - Heater Box


19 - Loading Door


20 - Loading Door (thru Sn 31v9368 & S66y580)


21 - Motor, Idler & Belt


22 - Panel Support Plate & Bracket


23 - Panels


24 - Rear Frame & Frame Base


25 - Wire Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Panel Support Plate		Appelez-nous	-
2	91176		Lockwasher,3/8 Intshkp				$ 1.44
3	52623		Switch,fabric Selector		Appelez-nous	-
5	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
6	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
7	53563		Switch,door Release		Appelez-nous	-
8	52610		Timer		Appelez-nous	-
9	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
10	23406		Knurled Nut		Appelez-nous	-
11	24857		Indicator		Appelez-nous	-
12	25285		Setscrew		Appelez-nous	-
13	24858		Assy,knob-timer		Appelez-nous	-
14	23130		Switch Collar		Appelez-nous	-
15	23392		Clip For 26816 Knob		Appelez-nous	-
16	23402		Knob,control		Appelez-nous	-
17	Y0053888		Screw, Housing		Appelez-nous	-
18	24391		Knurled Nut		Appelez-nous	-
19	23407		Nut,speed-8a Tinn C15		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
