SELECT A DIAGRAM

01 - 143p3 Rear Exhaust Deflector Kit


02 - 159p3 Side Exhaust Deflector Kit


03 - 160p3 Bottom Exhaust Deflector Kit


04 - 20600 Vent Kit


05 - 53377 Gas Valve (natural/mixed Gas)


06 - 54488 Gas Valve (natural/mixed Gas)


07 - Cabinet Top


08 - Clothes Drum


09 - Control Hood


10 - Control Panel & Controls


11 - Door Release


12 - Drum Light & Cover Plate


13 - Drum Light & Cover Plate


14 - Exhaust Fan


15 - Free Standing Pilot Bnr & Bnr Conv Kits


16 - Free Standing Pilot Bnr & Conv Kits


17 - Front Frame & Air Shroud


18 - Heater Box


19 - Loading Door

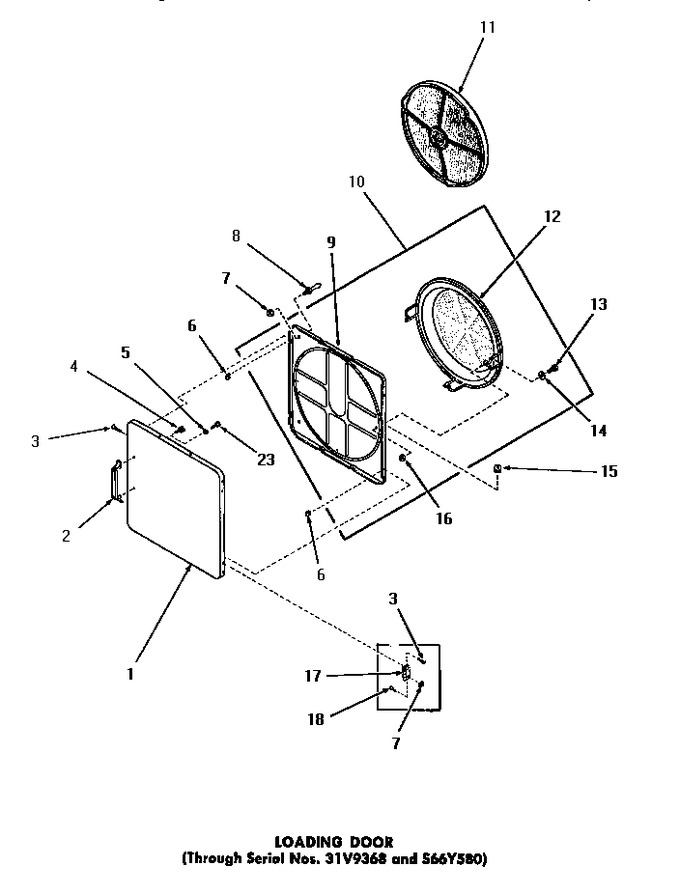

20 - Loading Door (thru Sn 31v9368 & S66y580)


21 - Motor, Idler & Belt


22 - Panel Support Plate & Bracket


23 - Panels


24 - Rear Frame & Frame Base


25 - Wire Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52197C		Outer Door Panel, Coppertone		Appelez-nous	-
1	52197W		Outer Door Panel, White		Appelez-nous	-
1	52197H		Outer Door Panel, Harvest Gold		Appelez-nous	-
1	52197A		Outer Door Panel, Avocado		Appelez-nous	-
3	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
5	Y20278		Lockwasher		Appelez-nous	-
6	52865		Speed Nut		Appelez-nous	-
7	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
8	51992		Strike,door		Appelez-nous	-
9	54730		Inner Door Panel		Appelez-nous	-
10	54738		Assy,housing & Panel		Appelez-nous	-
11	53002		No Longer Available		Appelez-nous	-
12	54731		Assy,grill&support-pur		Appelez-nous	-
13	24688		Cap Screw		Appelez-nous	-
14	Q6275		Washer		Appelez-nous	-
15	51858		Grommet		Appelez-nous	-
16	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
17	70014		Hinge (comml. Part)		Appelez-nous	-
18	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
