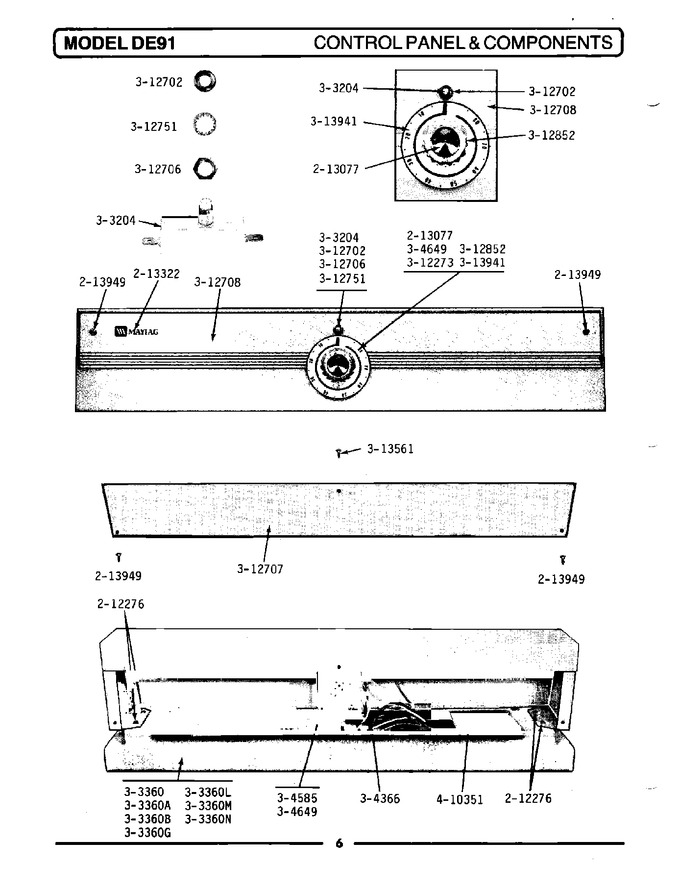

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 002 | 213077 | Cap For Timer Knob | 00 |
|
- | ||||
| 003 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 004 | WP355214 | Screw, No.8-18 X 5/16 Inch (Replaces: 213949) | 00 |
|
Immediately | $ 7.26 | |||
| 005 | Y303204 | Start Switch With Nuts | 00 |
|
- | ||||
| 006 | NLA | Top Cover-white | 00 |
|
- | ||||
| 007 | NLA | Top Cover-dark Avocado | 00 |
|
- | ||||
| 008 | NLA | Top Cover-dark Coppertone | 00 |
|
- | ||||
| 009 | NLA | Top Cover-dark Gold | 00 |
|
- | ||||
| 010 | NLA | Top Cover-almond | 00 |
|
- | ||||
| 011 | NLA | Top Cover-harvest Wheat | 00 |
|
- | ||||
| 012 | NLA | Top Cover-fresh Avocado | 00 |
|
- | ||||
| 013 | NLA | Main Wire Harness | 00 |
|
- | ||||
| 014 | Y304585 | Timer Motor Rpr | 00 |
|
- | ||||
| 015 | Y304649 | Timer Rpr | 00 |
|
- | ||||
| 016 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 017 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 018 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 019 | NLA | Back Cover For 3-3097 | 00 |
|
- | ||||
| 020 | NLA | Control Panel | 00 |
|
- | ||||
| 021 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 022 | 312852 | Selector Knob-clear Acrylic | 00 |
|
$ 23.60 | ||||
| 023 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 024 | NLA | Timer Dial | 00 |
|
- | ||||
| 025 | NLA | Harness Retainer | 00 |
|
- |
