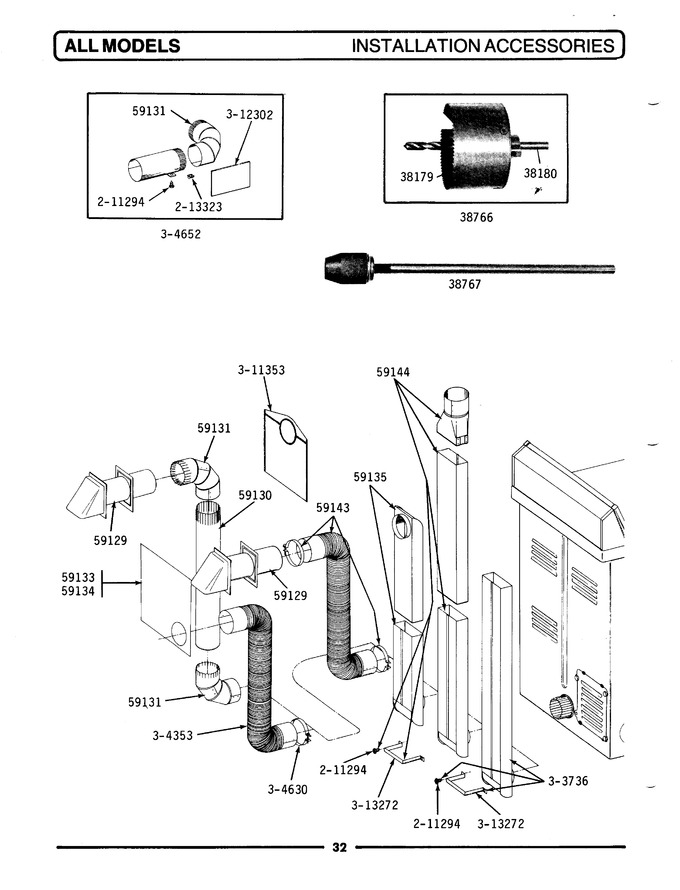

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Blade, Saw | 00 |
|
- | ||||
| 002 | NLA | Replacement Drill | 00 |
|
- | ||||
| 003 | NLA | Hole Saw W/drill Bit | 00 |
|
- | ||||
| 004 | NLA | Extension Chuck, Drill | 00 |
|
- | ||||
| 005 | 4396007RW | Hood, Vent (Replaces: Y059129) | 00 |
|
$ 23.95 | ||||
| 006 | Y059130 | Pipe, Venting | 00 |
|
- | ||||
| 007 | Y059131 | Elbow, Venting (4``) | 00 |
|
- | ||||
| 008 | NLA | Aluminum Window 4x12x18 | 00 |
|
- | ||||
| 009 | Y059134 | Plate, Alum. Window (15``x20``) | 00 |
|
- | ||||
| 010 | Y059135 | Vent Duct Assy. | 00 |
|
- | ||||
| 011 | Y059143 | Flexible Vent Kit | 00 |
|
- | ||||
| 012 | NLA | Rectangular Vent Kit | 00 |
|
- | ||||
| 013 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 014 | 213323 | Fastener, Exhaust Duct Kit | 00 |
|
- | ||||
| 015 | NLA | Exhaust Deflector Kit | 00 |
|
- | ||||
| 016 | 4396010RP | Flexible Aluminum Vent Duct (Replaces: Y304353) | 00 |
|
Immediately | $ 35.70 | |||
| 017 | Y304630 | Clamp, Flexible Duct | 00 |
|
- | ||||
| 018 | Y304652 | Exhaust Duct Kit | 00 |
|
- | ||||
| 019 | 311353 | Bag, Lint (dacron) | 00 |
|
- | ||||
| 020 | 312302 | Insulation, Exhaust Duct Kit | 00 |
|
- | ||||
| 021 | NLA | Bracket, Exhaust Deflector | 00 |
|
- |
