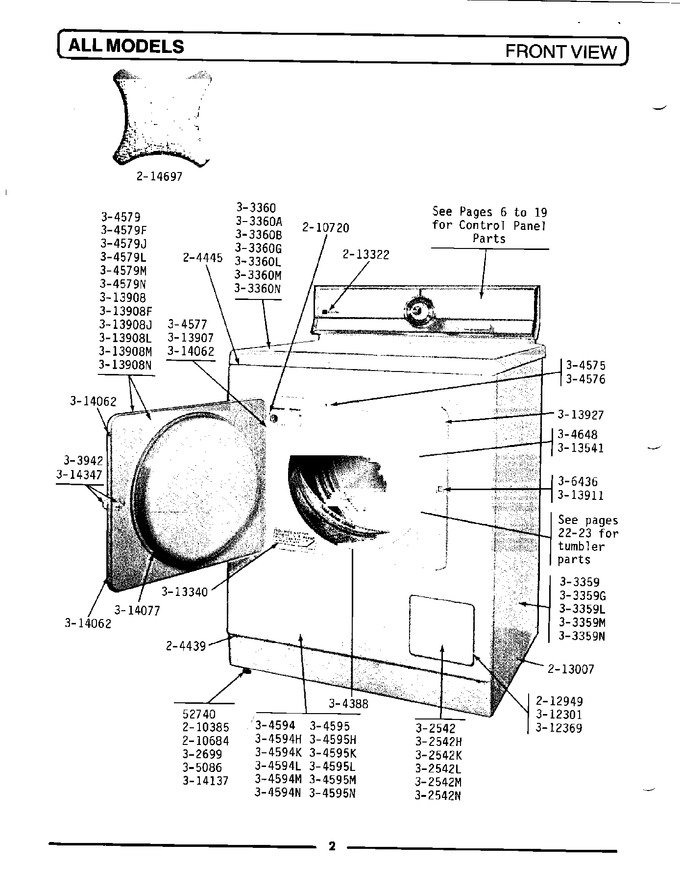

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 003 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 004 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 005 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 006 | WP210720 | Rivet (Replaces: 210720) | 00 |
|
$ 12.14 | ||||
| 007 | 212949 | Screw | 00 |
|
- | ||||
| 008 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 009 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 010 | NLA | Easy-grip Knob | 00 |
|
- | ||||
| 011 | NLA | Access Door (white) | 00 |
|
- | ||||
| 012 | NLA | Access Door-shaded Gold | 00 |
|
- | ||||
| 013 | NLA | Access Door-shaded Avocado | 00 |
|
- | ||||
| 014 | NLA | Access Door-almond | 00 |
|
- | ||||
| 015 | NLA | Access Door-harvest Wheat | 00 |
|
- | ||||
| 016 | NLA | Access Door-fresh Avocado | 00 |
|
- | ||||
| 017 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 018 | NLA | Cabinet-white | 00 |
|
- | ||||
| 019 | NLA | Cabinet-dark Gold | 00 |
|
- | ||||
| 020 | NLA | Cabinet-almond | 00 |
|
- | ||||
| 021 | NLA | Cabinet-harvest Wheat | 00 |
|
- | ||||
| 022 | NLA | Cabinet-fresh Avocado | 00 |
|
- | ||||
| 023 | NLA | Top Cover-white | 00 |
|
- | ||||
| 024 | NLA | Top Cover-dark Avocado | 00 |
|
- | ||||
| 025 | NLA | Top Cover-dark Coppertone | 00 |
|
- | ||||
| 026 | NLA | Top Cover-dark Gold | 00 |
|
- | ||||
| 027 | NLA | Top Cover-almond | 00 |
|
- | ||||
| 028 | NLA | Top Cover-harvest Wheat | 00 |
|
- | ||||
| 029 | NLA | Top Cover-fresh Avocado | 00 |
|
- | ||||
| 030 | NLA | Knob And Screw | 00 |
|
- | ||||
| 031 | WP33001003 | Lint Screen----s (Replaces: Y304388) | 00 |
|
Immediately | $ 43.47 | |||
| 032 | Y304577 | Door Hinge ----s | 00 |
|
- | ||||
| 033 | Y304579 | Door-white | 00 |
|
- | ||||
| 034 | NLA | Door-light Gold | 00 |
|
- | ||||
| 035 | NLA | Door-light Avocado | 00 |
|
- | ||||
| 036 | NLA | Door-almond | 00 |
|
- | ||||
| 037 | NLA | Door-harvest Wheat | 00 |
|
- | ||||
| 038 | NLA | Door-fresh Avocado | 00 |
|
- | ||||
| 039 | NLA | Front Panel-white | 00 |
|
- | ||||
| 040 | NLA | Front Panel-shaded Gold | 00 |
|
- | ||||
| 041 | NLA | Front Panel-shaded Avocado | 00 |
|
- | ||||
| 042 | NLA | Front Panel-almond | 00 |
|
- | ||||
| 043 | NLA | Front Panel-harvest Wheat | 00 |
|
- | ||||
| 044 | NLA | Front Panel-fresh Avocado | 00 |
|
- | ||||
| 045 | Y304648 | Tumbler Back With Seal | 00 |
|
- | ||||
| 046 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 00 |
|
$ 7.16 | ||||
| 047 | 306436 | Door Latch Kit--w | 00 |
|
Immediately | $ 10.17 | |||
| 048 | NLA | Bushing For Access Stud | 00 |
|
- | ||||
| 049 | 312369 | Sleeve-access Panel Stud | 00 |
|
- | ||||
| 050 | Y313340 | Label, Lint Screen Instruction | 00 |
|
- | ||||
| 051 | WP33313541 | Tumbler Seal -----s (Replaces: Y313541) | 00 |
|
Immediately | $ 54.49 | |||
| 052 | Y313907 | Twin Fastener | 00 |
|
- | ||||
| 053 | Y313908 | Door Panel-white | 00 |
|
- | ||||
| 054 | NLA | Door Panel-light Gold | 00 |
|
- | ||||
| 055 | NLA | Door Panel-light Avocado | 00 |
|
- | ||||
| 056 | NLA | Door Panel-almond | 00 |
|
- | ||||
| 057 | NLA | Door Panel-harvest Wheat | 00 |
|
- | ||||
| 058 | NLA | Door Panel-fresh Avocado | 00 |
|
- | ||||
| 059 | Y313911 | Door Strike Retainer | 00 |
|
$ 4.83 | ||||
| 060 | Y313927 | Instruction Label | 00 |
|
- | ||||
| 061 | Y314062 | Screw | 00 |
|
$ 12.03 | ||||
| 062 | 314077 | Door Seal | 00 |
|
- | ||||
| 063 | Y314137 | Foot, Rubber | 00 |
|
$ 14.08 | ||||
| 064 | NLA | Screw For Door Knob----na | 00 |
|
- |
