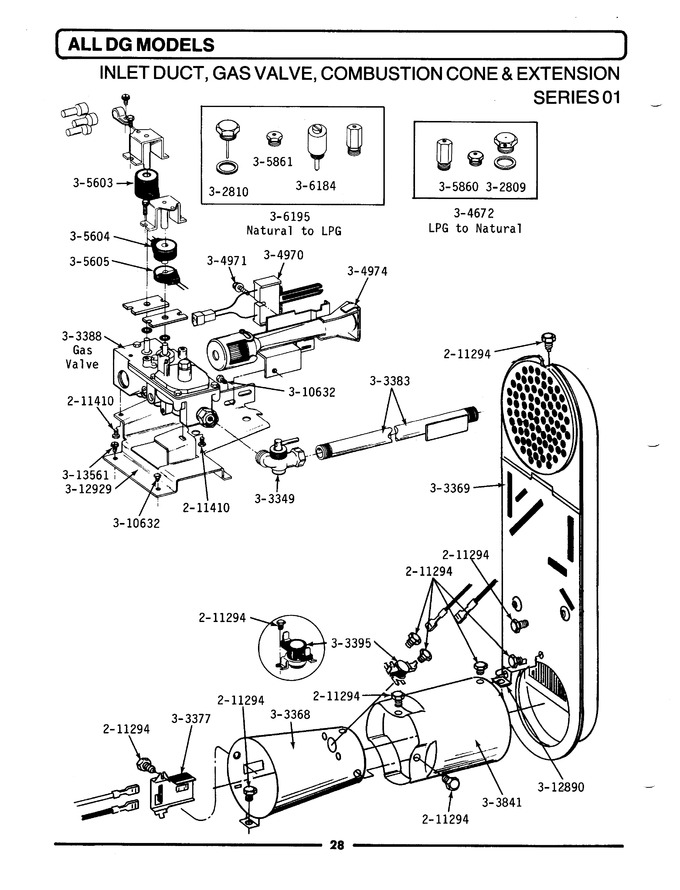

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP90767 | Screw (Replaces: 211294) | 01 |
|
Immediately | $ 7.04 | |||
| 002 | NLA | Screw, Hex Hd No.8 X 3/8 Inch | 01 |
|
- | ||||
| 003 | NLA | Screw Assembly, Leak Limit | 01 |
|
- | ||||
| 004 | NLA | Screw Assm - Blue Block Ope | 01 |
|
- | ||||
| 005 | Y303349 | Shut-off, Gas Valve | 01 |
|
- | ||||
| 006 | Y303368 | Cone, Combustion | 01 |
|
- | ||||
| 007 | Y303369 | Inlet Duct Assembly (dg) | 01 |
|
- | ||||
| 008 | WP338906 | Sensor, Radiant (Replaces: Y303377) | 01 |
|
Immediately | $ 46.72 | |||
| 009 | Y303383 | Pipe & Bracket Assy. | 01 |
|
- | ||||
| 010 | W10116794 | Gas Valve | 01 |
|
$ 301.20 | ||||
| 011 | WP303395 | Thermostat, Hi-limit (gas) (Replaces: 303395) | 01 |
|
Immediately | $ 66.35 | |||
| 012 | Y303841 | Cone, Extension (combustion) | 01 |
|
- | ||||
| 013 | Y304672 | Conversion Kit-lpg To Nat. | 01 |
|
$ 43.97 | ||||
| 014 | 4391996 | Igniter Assy, Gas Valve (Replaces: 304970) | 01 |
|
Immediately | $ 42.36 | |||
| 015 | 304971 | Screw | 01 |
|
- | ||||
| 016 | WP33002793 | Burner Assembly (Replaces: 304974) | 01 |
|
$ 161.35 | ||||
| 017 | 305603 | Secondary Coil | 01 |
|
- | ||||
| 018 | 305604 | Holding Coil | 01 |
|
$ 57.03 | ||||
| 019 | WP305605 | Booster Coil (Replaces: 305605) | 01 |
|
$ 102.82 | ||||
| 020 | 305860 | Main Burner Orifice Kit-nat | 01 |
|
- | ||||
| 021 | NLA | Main Burner Orifice Kit-lpg | 01 |
|
- | ||||
| 022 | NLA | Main Burner Orifice Kit-mix | 01 |
|
- | ||||
| 023 | NLA | Main Burner Orifice Kit-mfg | 01 |
|
- | ||||
| 024 | 306184 | Plug, Blocking (lpg Regulator) | 01 |
|
- | ||||
| 025 | MAL9000AXX | Convers.kit (nat To Lp)----s (Replaces: Y306195) | 01 |
|
$ 72.26 | ||||
| 026 | Y310632 | Screw | 01 |
|
- | ||||
| 027 | Y312890 | Retainer, Heater Chamber | 01 |
|
- | ||||
| 028 | 312929 | Gas Valve Bracket | 01 |
|
- | ||||
| 029 | Y313561 | Screw----na | 01 |
|
$ 5.27 |
