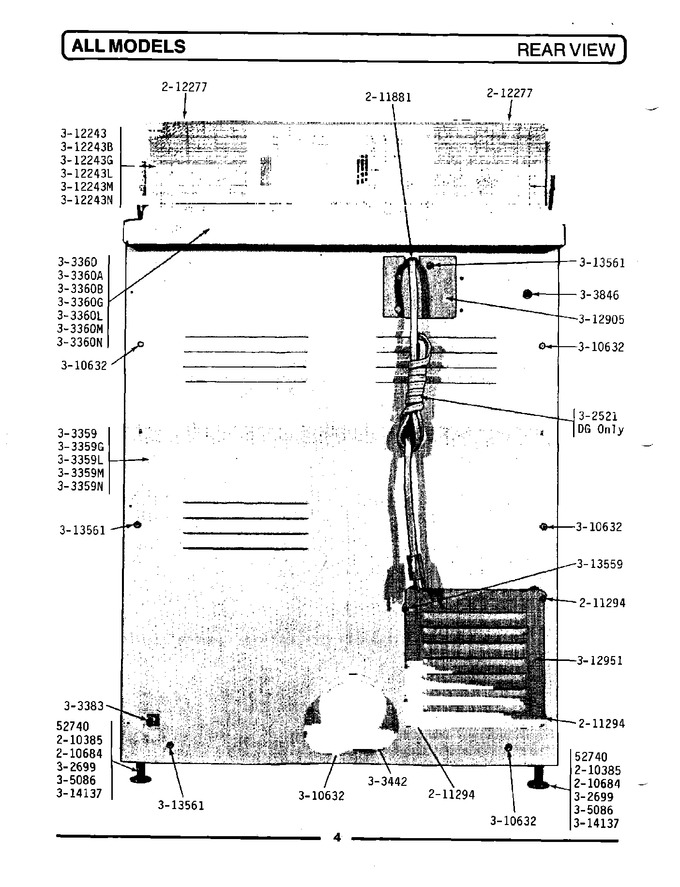

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | Y201808 | Converter | 00 |
|
- | ||||
| 003 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 004 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 005 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 006 | 211881 | Grommet, Cord | 00 |
|
- | ||||
| 007 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 008 | 301548 | Clamp, Ground (w/screw) | 00 |
|
- | ||||
| 009 | 302521 | Power Cord | 00 |
|
- | ||||
| 010 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 011 | NLA | Cabinet-white | 00 |
|
- | ||||
| 012 | NLA | Cabinet-dark Gold | 00 |
|
- | ||||
| 013 | NLA | Cabinet-almond | 00 |
|
- | ||||
| 014 | NLA | Cabinet-harvest Wheat | 00 |
|
- | ||||
| 015 | NLA | Cabinet-fresh Avocado | 00 |
|
- | ||||
| 016 | NLA | Top Cover-white | 00 |
|
- | ||||
| 017 | NLA | Top Cover-dark Avocado | 00 |
|
- | ||||
| 018 | NLA | Top Cover-dark Coppertone | 00 |
|
- | ||||
| 019 | NLA | Top Cover-dark Gold | 00 |
|
- | ||||
| 020 | NLA | Top Cover-almond | 00 |
|
- | ||||
| 021 | NLA | Top Cover-harvest Wheat | 00 |
|
- | ||||
| 022 | NLA | Top Cover-fresh Avocado | 00 |
|
- | ||||
| 023 | Y303383 | Pipe & Bracket Assy. | 00 |
|
- | ||||
| 024 | Y303442 | Exhaust Duct Assy. | 00 |
|
- | ||||
| 025 | NLA | Screw & Washer Assy. | 00 |
|
- | ||||
| 026 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 00 |
|
$ 7.16 | ||||
| 027 | Y310632 | Screw | 00 |
|
- | ||||
| 028 | 311155 | Ground Wire | 00 |
|
$ 8.77 | ||||
| 029 | Y311270 | Washer, Terminal Block | 00 |
|
$ 8.75 | ||||
| 030 | WP489483 | Screw, No.10-32 X 1/2 Inch (Replaces: Y311423) | 00 |
|
$ 9.78 | ||||
| 031 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 00 |
|
$ 7.16 | ||||
| 032 | Y312184 | Strap, Ground | 00 |
|
- | ||||
| 033 | W11164114 | Screw, No.10-24 X 3/4 Inch-----o (Replaces: Y312209) | 00 |
|
$ 3.76 | ||||
| 034 | NLA | Control Cover-white | 00 |
|
- | ||||
| 035 | NLA | Control Cover-dk Coppertone | 00 |
|
- | ||||
| 036 | NLA | Control Cover-dark Gold | 00 |
|
- | ||||
| 037 | NLA | Control Cover-almond | 00 |
|
- | ||||
| 038 | NLA | Control Cover-harvest Wheat | 00 |
|
- | ||||
| 039 | NLA | Control Cover-fresh Avocado | 00 |
|
- | ||||
| 040 | Y312904 | Bracket, Terminal Block | 00 |
|
- | ||||
| 041 | Y312905 | Cover, Terminal | 00 |
|
- | ||||
| 042 | Y312951 | Cover, Access | 00 |
|
- | ||||
| 043 | 313122 | Screw - Baffle To Tumbler | 00 |
|
- | ||||
| 044 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 045 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 046 | Y314137 | Foot, Rubber | 00 |
|
$ 14.08 | ||||
| 047 | 400008 | Block, Terminal | 00 |
|
$ 29.20 |
