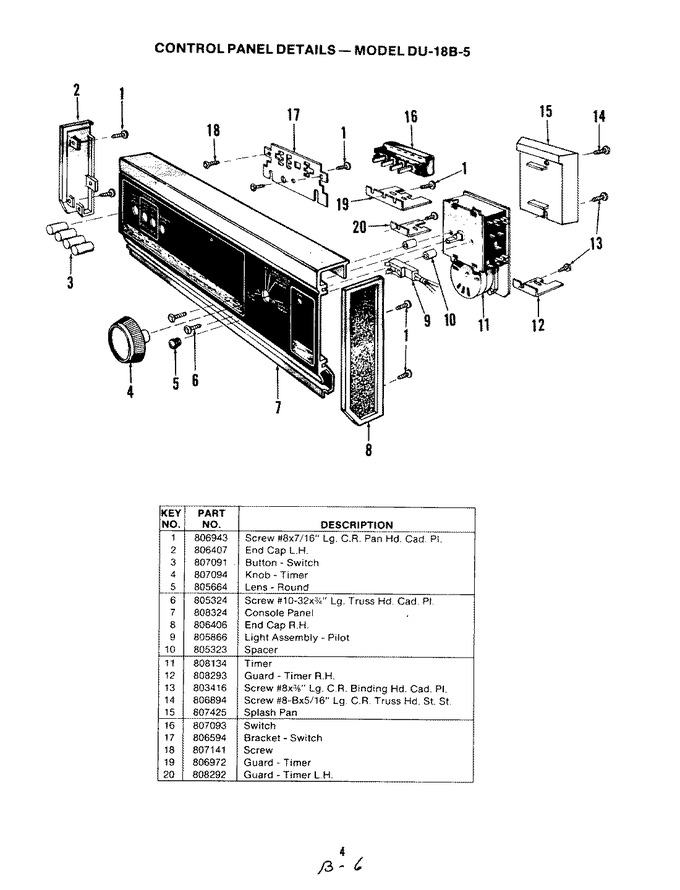

01 - Control Panel
02 - Detergent Cup
03 - Door Details
04 - Frame Details
05 - Motor, Heater & Spray Arm
06 - Rack Assembly
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806943 | Screw |
|
- | |||||
| 2 | 806407 | Lh End Cap |
|
- | |||||
| 3 | 807091 | Push Button |
|
- | |||||
| 4 | 807094 | Timer Knob |
|
- | |||||
| 5 | 805664 | Red Lens |
|
- | |||||
| 6 | 805324 | Screw |
|
- | |||||
| 7 | 808324 | Control Panel |
|
- | |||||
| 8 | 806406 | Rh End Cap |
|
- | |||||
| 9 | 805866 | Light Asm |
|
- | |||||
| 10 | 805323 | Spacer |
|
- | |||||
| 11 | 808134 | Timer |
|
- | |||||
| 12 | 808293 | Lh Timer Guard |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 803416) |
|
Immediately | $ 12.62 | ||||
| 14 | 806894 | Screw |
|
- | |||||
| 15 | 807425 | Splash Pan |
|
- | |||||
| 16 | 807093 | Selector Switch |
|
- | |||||
| 17 | 806594 | Switch Bracket |
|
- | |||||
| 18 | 807141 | Screw |
|
- | |||||
| 19 | 806972 | Timer Guard |
|
- | |||||
| 20 | 808292 | Rh Timer Guard |
|
- |
