01 - Control Panel
02 - Detergent Cup
03 - Door Details

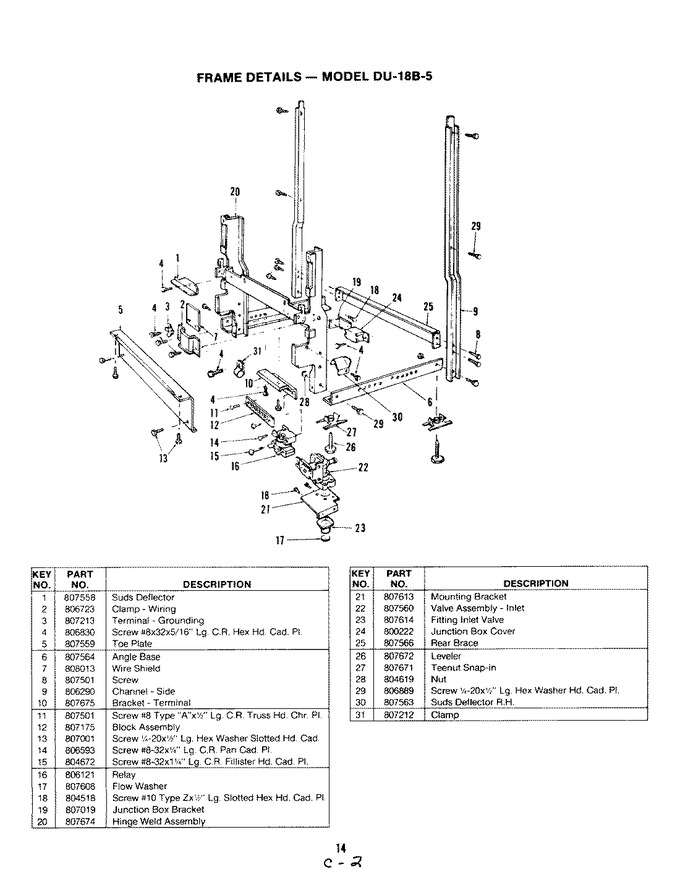

04 - Frame Details
05 - Motor, Heater & Spray Arm
06 - Rack Assembly
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807558 | Deflector |
|
- | |||||
| 2 | 806723 | Clamp |
|
- | |||||
| 3 | 807213 | Ground Terminal |
|
- | |||||
| 4 | 806830 | Screw |
|
- | |||||
| 5 | 807559 | Toe Plate |
|
- | |||||
| 6 | 807564 | Base Angle |
|
- | |||||
| 7 | COMM PART | Wire Shield (Replaces: 808013) |
|
- | |||||
| 8 | 807501 | Screw |
|
- | |||||
| 9 | 806290 | Channel |
|
- | |||||
| 10 | 807675 | Bracket |
|
- | |||||
| 11 | 807501 | Screw |
|
- | |||||
| 12 | 807175 | Terminal Block |
|
- | |||||
| 13 | 807001 | Screw |
|
- | |||||
| 14 | WP488234 | Screw (Replaces: 806593) |
|
$ 6.07 | |||||
| 15 | 804672 | Screw |
|
- | |||||
| 16 | 806121 | Sub 805255 |
|
- | |||||
| 17 | 807608 | Flow Washer |
|
- | |||||
| 18 | 804518 | Screw |
|
- | |||||
| 19 | 807019 | Bracket |
|
- | |||||
| 20 | 807674 | Hinge |
|
- | |||||
| 21 | 807613 | Valve Bracket |
|
- | |||||
| 22 | 807560 | Inlet Valve |
|
- | |||||
| 23 | 807614 | Valve Fitting |
|
- | |||||
| 24 | 800222 | Terminal Cover |
|
- | |||||
| 25 | 807566 | Rear Brace |
|
- | |||||
| 26 | 807672 | Leveler |
|
- | |||||
| 27 | 807671 | Teenut |
|
- | |||||
| 28 | M0282005 | Nut (Replaces: 804619) |
|
$ 7.07 | |||||
| 29 | 806889 | Screw |
|
- | |||||
| 30 | 807563 | Suds Deflector |
|
- | |||||
| 31 | 807212 | Clamp |
|
- |
