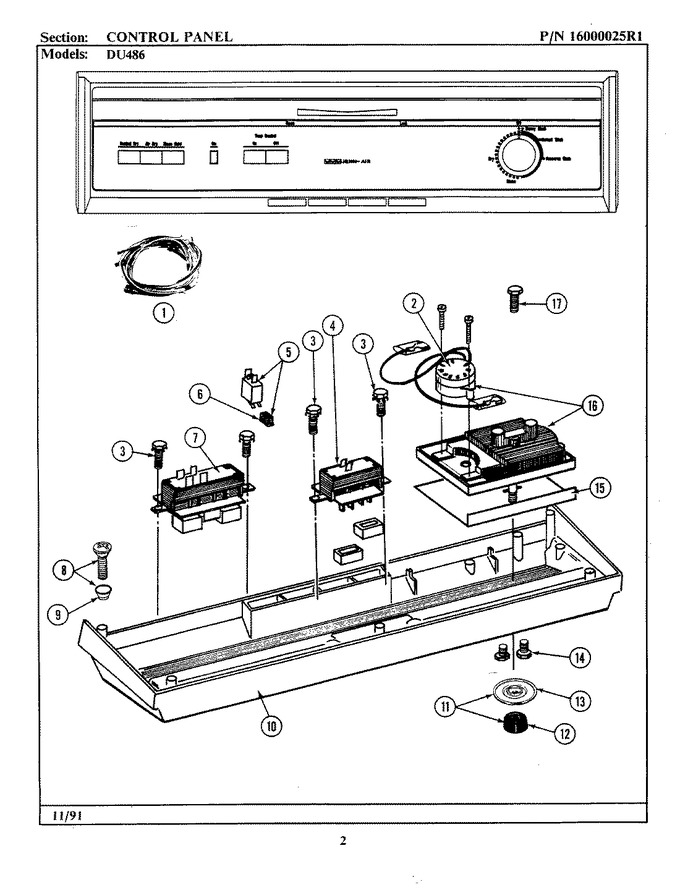

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	902777		Wire Harness	AO	Appelez-nous	-
1	903030		Wire Harness	A1	Appelez-nous	-
1	903011		Subharness	A1	Appelez-nous	-
1	902403		Sub Harness	AO	Appelez-nous	-
2	901829		Timer Motor	AO	Appelez-nous	-
3	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	AO			$ 9.40
4	902393		Control Switch-2 Button	AO	Appelez-nous	-
5	901636		Indicator Lamp	AO	Appelez-nous	-
6	912065		Lens	AO	Appelez-nous	-
7	902392		Control Switch-3 Button	AO	Appelez-nous	-
8	901434		Screw And Washer Assembly	AO	Appelez-nous	-
9	912006		Washer	AO	Appelez-nous	-
10	902391		Control Panel W/inserts	AO	Appelez-nous	-
11	902390		Timer Know & Dial	AO	Appelez-nous	-
12	912274		Timer Knob	AO	Appelez-nous	-
13	912275		Timer Dial	AO	Appelez-nous	-
14	W11684507		Screw   (Replaces: 212707)	AO			$ 12.23
15	912002		Barrier For Timer	AO	Appelez-nous	-
16	902484CP		Timer   (Replaces: 902484)	AO	Appelez-nous	-
17	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	AO			$ 9.79
