SELECT A DIAGRAM

01 - Blower & Float Assembly


02 - Cartons


03 - Control Panel (du486)


04 - Door (inner)


05 - Door (outer)


06 - Door Latch & Rinse Dispenser


07 - Pump Assembly


08 - Racks


09 - Tub


10 - Tub Fastener Kit

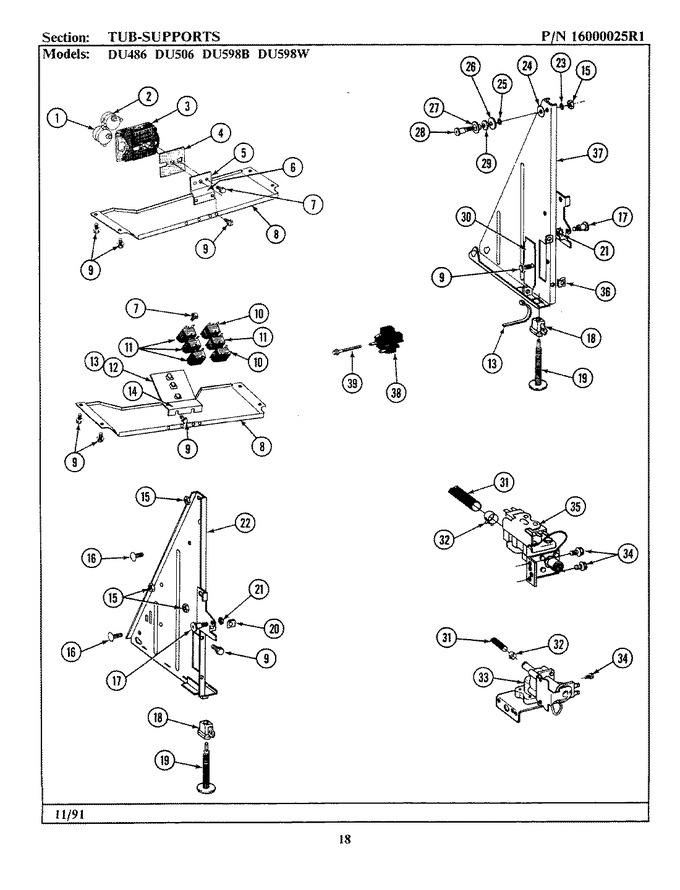

11 - Tub Support


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	911231		Base, Frame		Appelez-nous	-
9	WP4312464		Screw   (Replaces: 912197)				$ 6.26
13	WPW10339879		Strap, Cable   (Replaces: 912266)				$ 7.11
15	Y052721		Nut				$ 21.38
16	911917		Fastener, Insulation		Appelez-nous	-
17	910747		Hinge Pin		Appelez-nous	-
18	912447		Insert, Leg		Appelez-nous	-
19	WP233550		Leg, Adjustable   (Replaces: 910392)				$ 7.16
20	911765		U Type Fastener		Appelez-nous	-
21	WP3400029		Nut, Washered Lock   (Replaces: Y311426)			Immediately	$ 6.98
22	902769		Tub Support Assy Lh		Appelez-nous	-
23	911852		Washer, Lock (brace)		Appelez-nous	-
24	911855		Washer		Appelez-nous	-
25	911461		Washer		Appelez-nous	-
26	Y911355		Cushion Washer		Appelez-nous	-
27	910390		Roller		Appelez-nous	-
28	910053		Shaft, Rack Roller		Appelez-nous	-
29	911356		Washer		Appelez-nous	-
30	911425		Spring Access Cover		Appelez-nous	-
31	911249		Injector Hose		Appelez-nous	-
32	WP596669		Clamp, Spring   (Replaces: 911856)			Immediately	$ 7.56
33	902543		Water Valve				$ 88.06
34	Y310632		Screw		Appelez-nous	-
36	910646		Fastener		Appelez-nous	-
37	902768		Tub Support Assy (right)		Appelez-nous	-
38	902460		Relay,motor		Appelez-nous	-
39	912381		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
