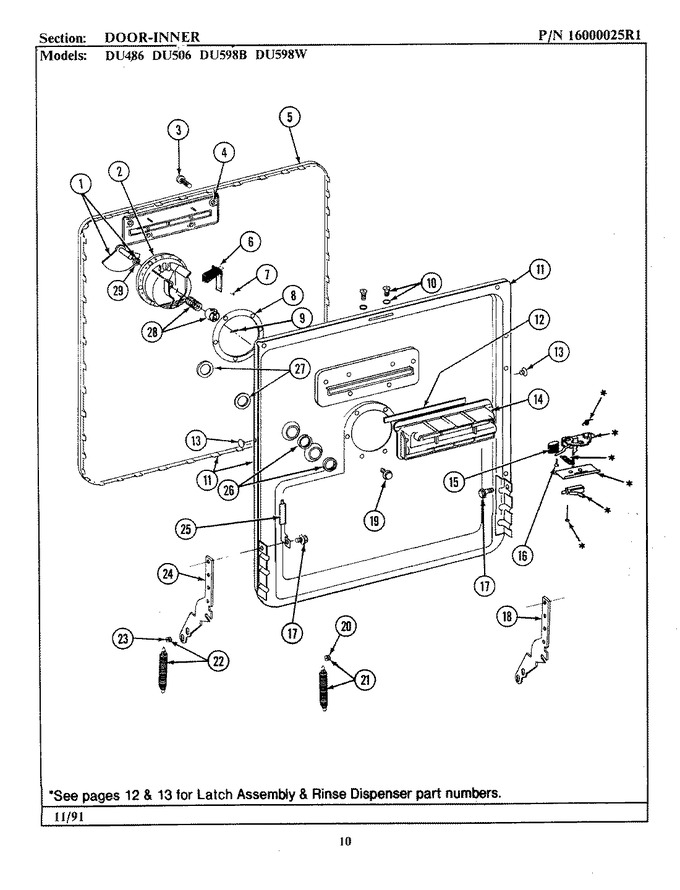

01 - Blower & Float Assembly


02 - Cartons


03 - Control Panel (du486)


04 - Door (inner)


05 - Door (outer)


06 - Door Latch & Rinse Dispenser


07 - Pump Assembly


08 - Racks


09 - Tub


10 - Tub Fastener Kit


11 - Tub Support


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901108		Detergent Cup,cover & Seal		Appelez-nous	-
2	902884		Detergent Cup		Appelez-nous	-
3	911700		Screw		Appelez-nous	-
4	W10841140		Silastic,adh.sealant   (Replaces: Y058700)			Immediately	$ 24.92
4	911598		Cover For Door Vent		Appelez-nous	-
5	WP901403		Gasket, Door   (Replaces: 901403)			Immediately	$ 170.40
6	901011		Bi-metal Release		Appelez-nous	-
7	910186		Screw		Appelez-nous	-
8	910413		Gasket		Appelez-nous	-
9	911348		Detergent Cup Pin		Appelez-nous	-
10	901090		Screw And Washer Assembly		Appelez-nous	-
11	901551		Door And Gasket Assembly		Appelez-nous	-
12	911692		Flapper For Vent		Appelez-nous	-
13	911036		Guide Button		Appelez-nous	-
14	911597		Vent For Door		Appelez-nous	-
15	912273		Knob		Appelez-nous	-
16	Y911263		Screw		Appelez-nous	-
17	911066		Screw		Appelez-nous	-
18	911466		Hinge-right Hand		Appelez-nous	-
19	WP90767		Screw   (Replaces: 214332)			Immediately	$ 7.04
20	910391		Insert				$ 5.84
21	Y901862		Door Spring Kit				$ 20.84
22	901111		Door Spring Kit				$ 39.18
23	911448		Insert For Hinge				$ 5.75
24	911467		Hinge-left Hand		Appelez-nous	-
25	911874		Grounding Bracket		Appelez-nous	-
26	910170		Nut-fill Spout		Appelez-nous	-
27	910069		Washer, Tub Top				$ 35.86
28	902247		Cam And Spring Kit		Appelez-nous	-
29	911397		Detergent Cup Seal				$ 24.13
