SELECT A DIAGRAM

01 - Blower & Float Assembly


02 - Cartons


03 - Control Panel (du486)


04 - Door (inner)


05 - Door (outer)


06 - Door Latch & Rinse Dispenser


07 - Pump Assembly


08 - Racks


09 - Tub

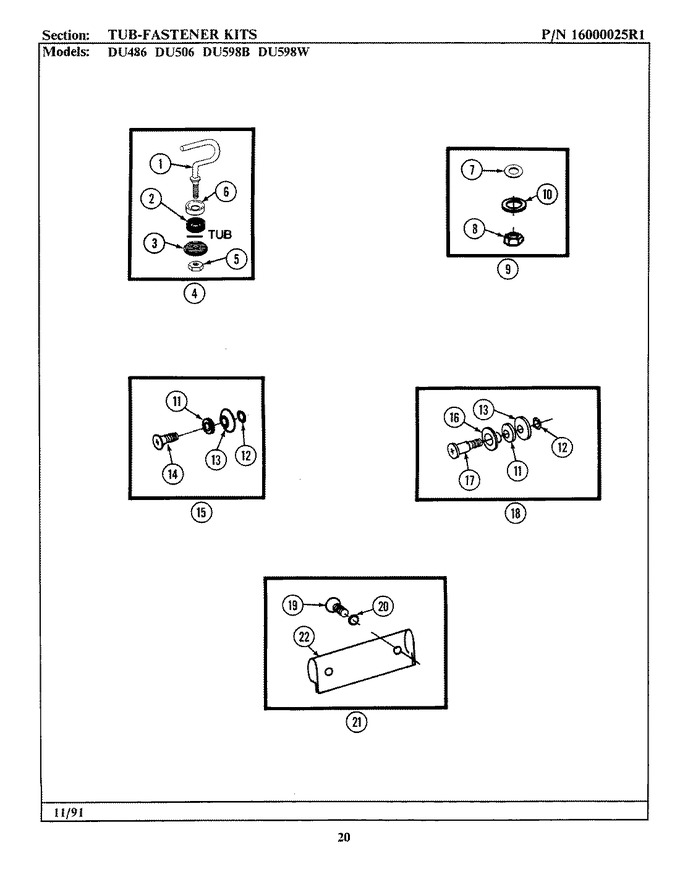

10 - Tub Fastener Kit


11 - Tub Support


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	910033		Heater Hook	1	Appelez-nous	-
2	910031		Seal Washer	1	Appelez-nous	-
3	910090		Sealing Washer	1	Appelez-nous	-
4	900100		Heater Hook W/seals	1	Appelez-nous	-
5	M0282009		Hex. Nut----na   (Replaces: Y052679)	1			$ 12.06
6	910030		Washer	1	Appelez-nous	-
7	910054		Washer	1	Appelez-nous	-
8	910180		Jam Nut	1	Appelez-nous	-
9	900381		Heater Seal Kit	1	Appelez-nous	-
10	910603		Washer, Heating Element	1	Appelez-nous	-
11	911356		Washer	1	Appelez-nous	-
12	911461		Washer	1	Appelez-nous	-
13	Y911355		Cushion Washer	1	Appelez-nous	-
14	910175		Screw	1	Appelez-nous	-
15	901037		Bolt, Washer And Seal Assm.	1	Appelez-nous	-
16	910390		Roller	1	Appelez-nous	-
17	910053		Shaft, Rack Roller	1	Appelez-nous	-
18	901038		Shaft, Washer And Seal Assm	1	Appelez-nous	-
19	910604		Screw	1	Appelez-nous	-
20	910567		Washer	1	Appelez-nous	-
21	SC1002		Screws,washers & Shield Ass   (Replaces: 901303)	1		Immediately	$ 87.61
22	911621		Shield	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
