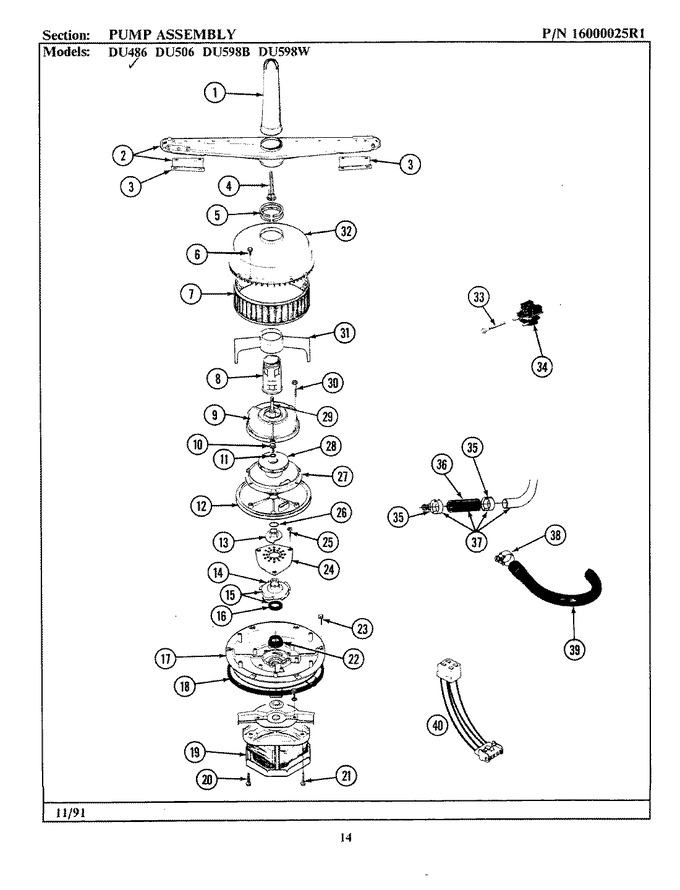

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912324 | Nozzle | 1 |
|
- | ||||
| 2 | 902807 | Spray Arm W/shield | 1 |
|
- | ||||
| 3 | 911919 | Radiant Shield | 1 |
|
- | ||||
| 4 | 912316 | Nut | 1 |
|
- | ||||
| 5 | 912313 | Ring, Seal | 1 |
|
$ 33.76 | ||||
| 6 | 912384 | Screw | 1 |
|
- | ||||
| 7 | 912328 | Filter | 1 |
|
- | ||||
| 8 | Y912320 | Support For Wash Arm | 1 |
|
- | ||||
| 9 | 912321 | Discharge Housing (upr) | 1 |
|
- | ||||
| 10 | 910654 | Screw, Impeller | 1 |
|
$ 6.05 | ||||
| 11 | 910934 | Seal, O-ring | 1 |
|
$ 5.83 | ||||
| 12 | 912329 | Screen Support | 1 |
|
- | ||||
| 13 | 912310 | Disc, Cutter | 1 |
|
$ 5.22 | ||||
| 14 | 912317 | Drain Impeller | 1 |
|
- | ||||
| 15 | WP902875 | Drain Impeller Assy (Replaces: 902875) | 1 |
|
$ 3.71 | ||||
| 16 | 902883 | Seal Seat Assy | 1 |
|
- | ||||
| 17 | 912330 | Pump Housing | 1 |
|
- | ||||
| 18 | 901674 | Gasket With Fasteners | 1 |
|
$ 31.06 | ||||
| 19 | 902598 | Motor & Pump Complete | 1 |
|
- | ||||
| 20 | WP488234 | Screw, Ground Wire (Replaces: 910343) | 1 |
|
$ 6.07 | ||||
| 21 | 912382 | Screw | 1 |
|
- | ||||
| 22 | 902882 | Seal, Pump | 1 |
|
$ 28.18 | ||||
| 23 | 910934 | Seal, O-ring | 1 |
|
$ 5.83 | ||||
| 23 | 911857 | Screw | 1 |
|
- | ||||
| 24 | 912309 | Plate, Chopper | 1 |
|
- | ||||
| 25 | 61002031 | Screw (Replaces: Y912385) | 1 |
|
$ 41.36 | ||||
| 26 | 912510 | O-ring | 1 |
|
$ 5.75 | ||||
| 27 | 912323 | Plate, Suction | 1 |
|
- | ||||
| 28 | WP902461 | Impeller Assembly (Replaces: 902461) | 1 |
|
$ 56.39 | ||||
| 29 | 912314 | Wash Arm Support Shaft | 1 |
|
- | ||||
| 30 | 912383 | Screw | 1 |
|
- | ||||
| 31 | 902463 | Rinse Arm Assy | 1 |
|
- | ||||
| 32 | 912327 | Strainer | 1 |
|
- | ||||
| 33 | 912381 | Screw | 1 |
|
- | ||||
| 34 | 902460 | Relay,motor | 1 |
|
- | ||||
| 35 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | 1 |
|
Immediately | $ 7.03 | |||
| 36 | 911593 | Rubber Coupling | 1 |
|
- | ||||
| 37 | 901586 | Top Spray Hose W/coupling | 1 |
|
- | ||||
| 38 | WP285655 | Clamp,hose (tub Outlet) (Replaces: 201011) | 1 |
|
Immediately | $ 7.55 | |||
| 39 | 912307 | Hose, Drain | 1 |
|
- | ||||
| 40 | 903008 | Adapter Harness | 1 |
|
- |
