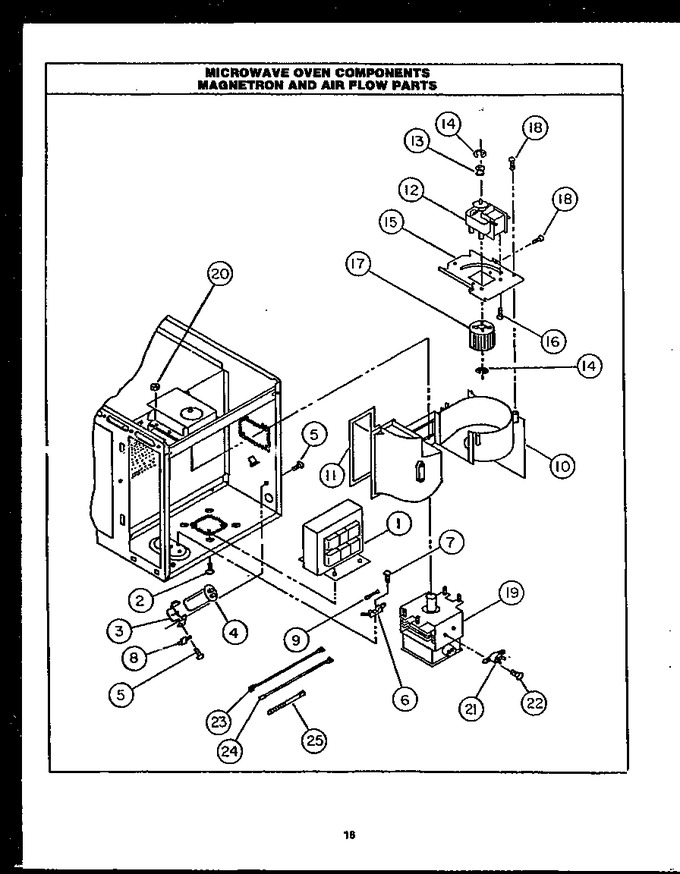

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0055302 | Transformer |
|
- | |||||
| 2 | 0055228 | Screw |
|
- | |||||
| 3 | Y0055230 | Bracket, Capacitor |
|
- | |||||
| 4 | Y0055291 | Capacitor |
|
- | |||||
| 5 | 0055232 | Screw |
|
- | |||||
| 6 | 0055282 | Block, Fuse |
|
- | |||||
| 7 | Y0055271 | Screw |
|
- | |||||
| 8 | Y0055296 | Kit, Diode |
|
- | |||||
| 9 | 0055205 | Fuse-20a |
|
- | |||||
| 10 | Y0055250 | Air Duct |
|
- | |||||
| 11 | 0055268 | Seal, Foam |
|
- | |||||
| 12 | 0055258 | Blower Motor |
|
- | |||||
| 13 | 0055220 | Pulley, Motor |
|
- | |||||
| 14 | 0055223 | E Ring |
|
- | |||||
| 15 | Y0055317 | Bracket, Motor |
|
- | |||||
| 16 | Y0055218 | Screw No.6 |
|
- | |||||
| 17 | Y0055303 | Blower Wheel |
|
- | |||||
| 18 | 0055289 | Screw 11-16 X 1/2 |
|
- | |||||
| 19 | Y0055290 | Magnetron |
|
- | |||||
| 20 | Y0055318 | Flange Nut |
|
- | |||||
| 21 | Y0055295 | Thermal Protector |
|
- | |||||
| 22 | 0055234 | Screw |
|
- | |||||
| 23 | Y0055261 | Lead, Hi Volt |
|
- | |||||
| 24 | Y0055240 | Jumper, Hi Voltage |
|
- | |||||
| 25 | W10124553 | Tie, Cable |
|
- |
