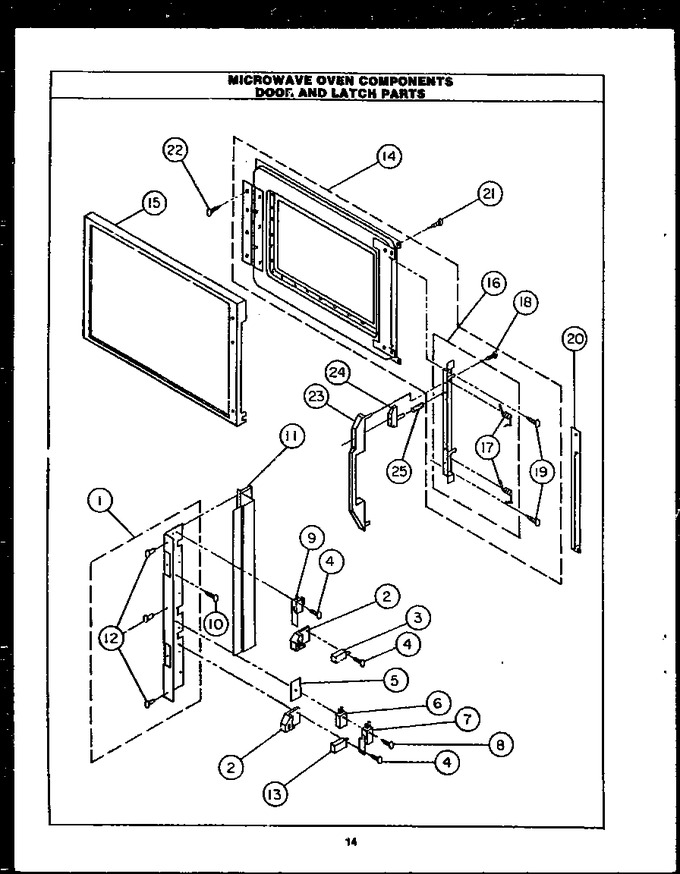

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0055213		X Bracket, Catch		Appelez-nous	-
2	0055217		Catch		Appelez-nous	-
3	814037		Switch, Primary Interlock   (Replaces: Y0055294)				$ 81.32
4	Y0055233		Screw		Appelez-nous	-
5	0055239		Insulator, Mon. Sw.		Appelez-nous	-
6	Y0055293		Switch, Monitor/oven Light		Appelez-nous	-
7	Y0055293		Switch, Monitor/oven Light		Appelez-nous	-
8	0055207		Screw		Appelez-nous	-
9	Y0055238		Switch, Secondary Interlock		Appelez-nous	-
10	0055202		Screw		Appelez-nous	-
11	0055213		X Bracket, Catch		Appelez-nous	-
12	Y0055222		Pop Rivet A		Appelez-nous	-
13	Y0055238		Switch, Secondary Interlock		Appelez-nous	-
14	0055314		Door, Inner		Appelez-nous	-
15	W10124556		Door Frame		Appelez-nous	-
16	0055286		Latch Assy		Appelez-nous	-
17	Y0055212		Spring, Torsion		Appelez-nous	-
18	0055272		Screw		Appelez-nous	-
19	Y0055275		Screw		Appelez-nous	-
20	Y0055305		End Cap		Appelez-nous	-
21	Y0055276		Screw		Appelez-nous	-
22	Y0055216		Screw		Appelez-nous	-
23	Y0055284		Handle Door		Appelez-nous	-
24	Y0055283		Button, Door		Appelez-nous	-
25	Y0055206		Spring, Compression		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
