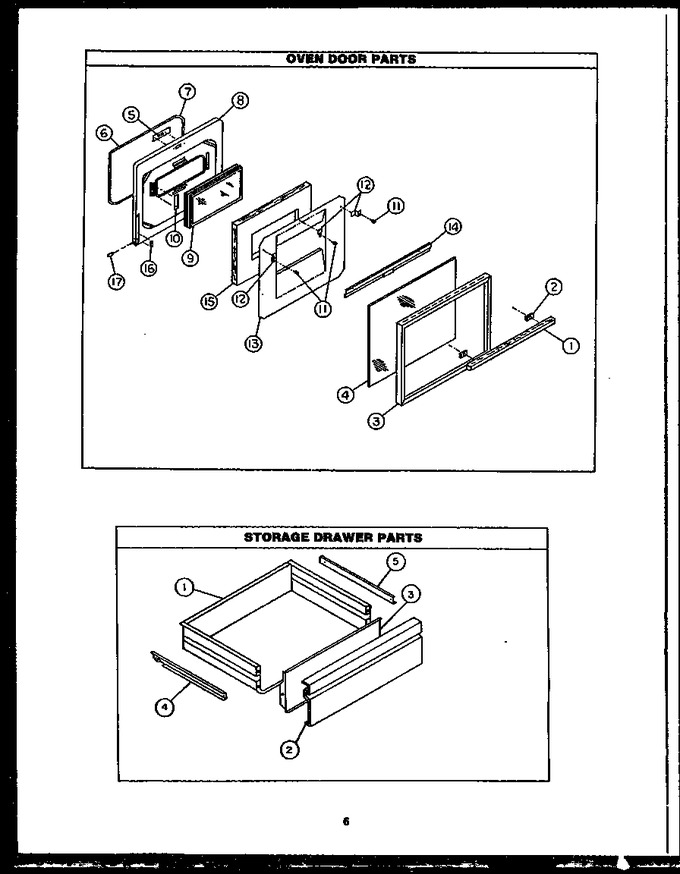

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0068150		Handle, Door		Appelez-nous	-
1	0061234		Drawer Assembly		Appelez-nous	-
2	063702L		Panel, Drawer L		Appelez-nous	-
2	W10124626		Drawer Panel, Harvest		Appelez-nous	-
2	063702W		Panel, Drawer Wht		Appelez-nous	-
2	Y0079978		Spacer Door Handle		Appelez-nous	-
3	0063703		Frame, Glass Door		Appelez-nous	-
3	0061930		Sub 57441cg, Drawer Panel		Appelez-nous	-
4	0061254		Sub 300031, Drawer Track Lh		Appelez-nous	-
4	0063652		Panel, Black Glass		Appelez-nous	-
5	0061255		Drawer Track Rh		Appelez-nous	-
5	Y0052039		Latch Plate		Appelez-nous	-
6	0068429		Clip, Tinnerman		Appelez-nous	-
7	0071637		Dr. Gasket		Appelez-nous	-
8	Y0063579		Backer Oven Door Lt. Gray		Appelez-nous	-
9	0041491		Window Assy		Appelez-nous	-
10	Y0052629		Retainer, Door Glass		Appelez-nous	-
11	Y0063661		Bumper, Oven Door		Appelez-nous	-
12	Y0062439		Support Bracket, Glass		Appelez-nous	-
13	Y0063656		Plate, Insulation		Appelez-nous	-
14	0063193		Plate, Air Baffle		Appelez-nous	-
15	Y0063664		Sub 41966, Insulation		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	0091632		Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
