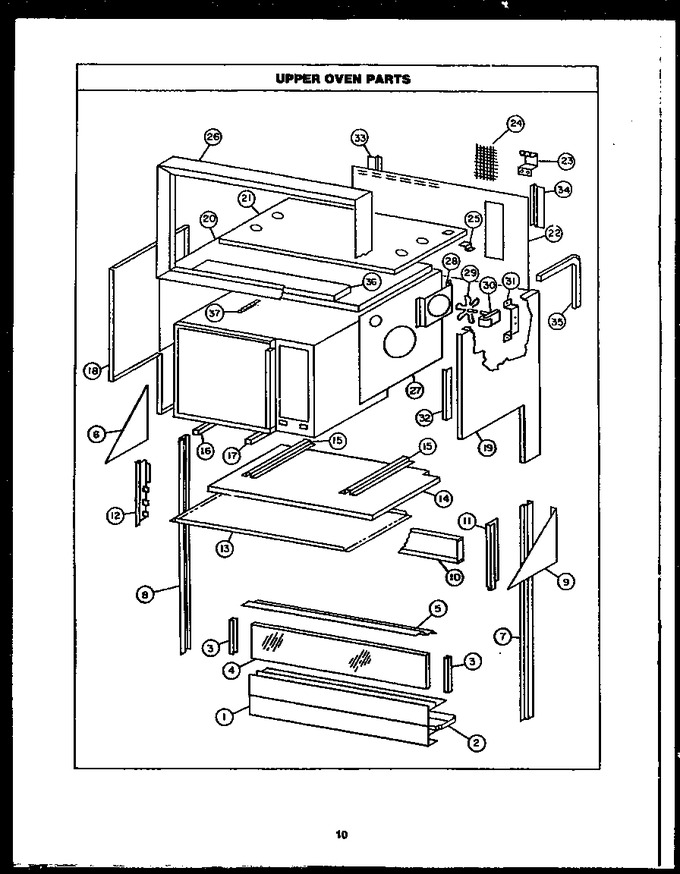

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0059852		Trim, Lower, Splashplate		Appelez-nous	-
2	0059773		Heat Shield, Splashplate		Appelez-nous	-
3	Y0071954		Trim, Glass		Appelez-nous	-
4	0062229		Glass, Splashplate		Appelez-nous	-
5	0062230		Trim, Rear		Appelez-nous	-
6	Y0069677		Brace, Upper Oven		Appelez-nous	-
7	W10124819		Support, Upper Oven-r.h.		Appelez-nous	-
8	W10124815		Support, Upper Oven-l.h.		Appelez-nous	-
9	Y0061932		Brace, Shelf, R.h.		Appelez-nous	-
10	0071064		Panel, Surface Light		Appelez-nous	-
11	Y0062132		Trim, Lower Support, R.h.		Appelez-nous	-
12	Y0062131		Trim, Lower Support, L.h.		Appelez-nous	-
13	W10125481		Jacket Bottom		Appelez-nous	-
14	Y0059894		Shelf		Appelez-nous	-
15	Y0059895		Support-micro Runner		Appelez-nous	-
16	0059907		Runner, Micro, Left		Appelez-nous	-
17	0059908		Runner, Micro, Right		Appelez-nous	-
18	W10124830		End Panel, L.h.-harvest		Appelez-nous	-
18	W10124603		End Panel - L.h., Almond		Appelez-nous	-
18	W10124832		End Panel, L.h.-white		Appelez-nous	-
19	W10124828		End Panel, R.h.-almond		Appelez-nous	-
19	W10124827		End Panel, R.h.-harvest		Appelez-nous	-
19	W10124829		End Panel, R.h.-white		Appelez-nous	-
20	W10125476		Baffle		Appelez-nous	-
21	Y0059864		Jacket Top		Appelez-nous	-
22	Y0059865		Cover, Wire, Rear		Appelez-nous	-
23	Y0059866		Baffle, Rear Cover		Appelez-nous	-
24	Y0059867		Screen, Air Inlet		Appelez-nous	-
25	Y0073060		Receptacle Cover		Appelez-nous	-
26	Y0059878		Sub 59480, Frame Assy Upper Ov		Appelez-nous	-
27	Y0059896		Cover, Rh		Appelez-nous	-
28	Y0062143		Mtg. Bracket, Fan		Appelez-nous	-
29	Y0042754		Blade, Fan		Appelez-nous	-
30	Y0042226		Fan Motor		Appelez-nous	-
31	0062140		Bracket, Motor Mount		Appelez-nous	-
32	Y0059770		Brace, Control Panel		Appelez-nous	-
33	0062139		Spacer, Wall		Appelez-nous	-
34	Y0059921		Spacer, Wall		Appelez-nous	-
35	Y0059767		Gasket, Foam		Appelez-nous	-
36	W10125474		Cap, Baffle		Appelez-nous	-
37	W10125471		Separator		Appelez-nous	-
