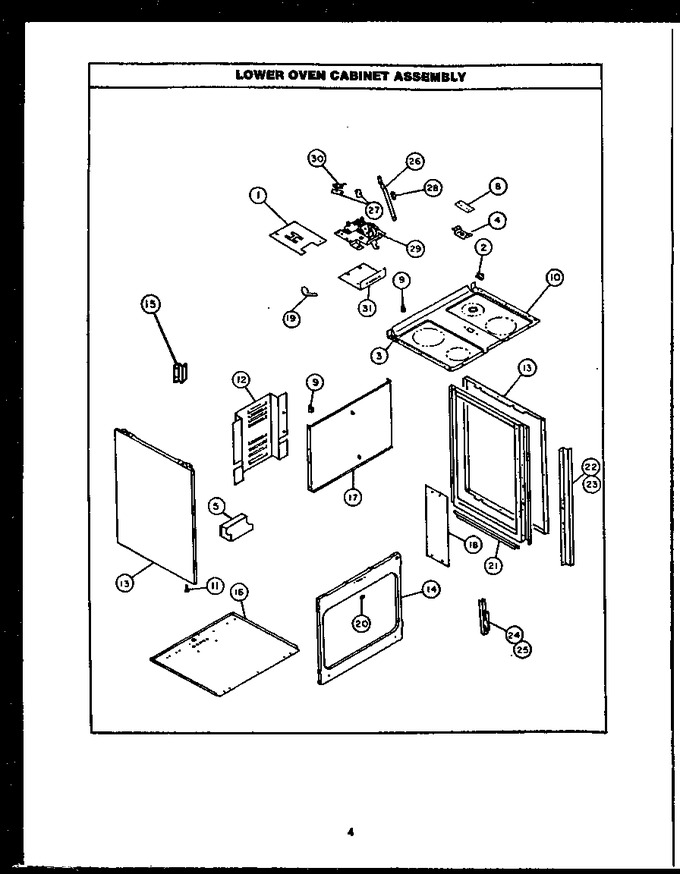

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0063353 | Retainer, Oven Light |
|
- | |||||
| 2 | Y0091519 | Bracket |
|
- | |||||
| 3 | Y0091520 | Bracket |
|
- | |||||
| 4 | 0067880 | Housing, Oven Light |
|
- | |||||
| 5 | Y0062999 | Cover, Lamp Ballast |
|
- | |||||
| 8 | 0067879 | Cover Plate, Oven Lamp |
|
- | |||||
| 9 | Y0091587 | Cable, Clip Esm |
|
- | |||||
| 10 | 0067871 | Sub 67871cg, Drip Baffle, Gray |
|
- | |||||
| 11 | Y0062362 | Leg, Leveling |
|
- | |||||
| 12 | 0063689 | Cover, Wire Box |
|
- | |||||
| 13 | W10124847 | Panel, Main End - R.h. - Almon |
|
- | |||||
| 13 | W10124845 | Main End, Harvest |
|
- | |||||
| 13 | W10124846 | Panel, Main End - R.h. - Almon |
|
- | |||||
| 14 | Y00000000 | See Note Front Frame |
|
- | |||||
| 15 | 0040683 | Capillary Cover Go&eo Single |
|
- | |||||
| 16 | 0091309 | Retainer |
|
- | |||||
| 17 | Y0060625 | Rear Panel |
|
- | |||||
| 18 | 0063168 | Insulation Retainer, Side |
|
- | |||||
| 19 | Y0068513 | Clamp, Wire-insulate |
|
- | |||||
| 20 | 0076733 | Washer K |
|
- | |||||
| 21 | 0061252 | Drawer Track, Rh. |
|
- | |||||
| 21 | 0061253 | Track, Storage Drawer, Lh |
|
- | |||||
| 22 | 0061812 | Trim, Side Panel, Rh |
|
- | |||||
| 23 | 0061811 | Front Trim, L.h. |
|
- | |||||
| 24 | Y0067795 | Kit, Door Hinge(rh-ss) |
|
- | |||||
| 25 | Y0066953 | Kit, Door Hinge(lh-hs) |
|
- | |||||
| 26 | Y0065779 | Latch Arm Black |
|
- | |||||
| 27 | Y0091523 | Insulation, Esm |
|
- | |||||
| 28 | Y0067844 | Knob, Latch - Black |
|
- | |||||
| 29 | Y0068102 | Latch, Ov. Door |
|
- | |||||
| 30 | Y0065780 | Switch, Clean Circuit |
|
$ 11.77 | |||||
| 31 | 0068101 | Bracket, Latch Mounting |
|
- | |||||
| NI | 0059798 | Plug Button |
|
- | |||||
| NI | Y0068091 | Bracket, Switch Mounting |
|
- | |||||
| NI | 0076204 | Retainer Nut |
|
- |
