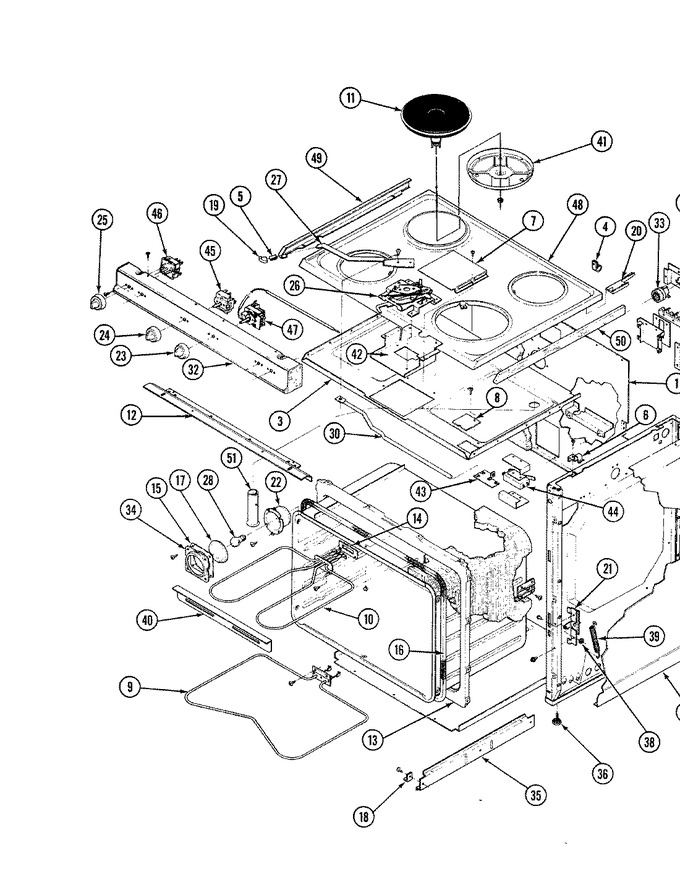

01 - Body (lower)
02 - Body (upper)
03 - Control Panel
04 - Door Assembly (lower)
05 - Door Assembly (upper)
06 - Oven (upper)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7401P018-60 | Block | 1 |
|
- | ||||
| 1 | 1867264 | Block | 1 |
|
- | ||||
| 1 | 1867269 | Block | 1 |
|
- | ||||
| 1 | 4002F067-20 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 2 | 7116P002-60 | Bolt, Door Lock | 1 |
|
- | ||||
| 3 | 3801F093 | Bracket | 1 |
|
- | ||||
| 3 | 4011F081-20 | Box, Burner | 1 |
|
- | ||||
| 3 | 3802F046-20 | Brace, Main Top | 1 |
|
- | ||||
| 3 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 4 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 5 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 6 | WP25-7220 | Clip, Top Retainer (Replaces: 7112P042-60) | 1 |
|
$ 10.77 | ||||
| 6 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 7 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 8 | 4005F139 | Cover Switch Lock | 1 |
|
- | ||||
| 9 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 10 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 11 | 7720P102-60 | Trim | 1 |
|
- | ||||
| 11 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 1 |
|
$ 244.76 | ||||
| 11 | 7720P101-60 | Trim | 1 |
|
- | ||||
| 11 | 7406P024-60 | Element, Solid Disc (8``) | 1 |
|
- | ||||
| 12 | 4012F016-80 | Front, Bur Box Bot | 1 |
|
- | ||||
| 13 | 0462237 | Frame, Oven Front | 1 |
|
- | ||||
| 14 | 7201P003-60 | Gasket, Element | 1 |
|
- | ||||
| 14 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 15 | 7201P015-60 | Gasket, Lamp Retainer | 1 |
|
- | ||||
| 16 | 1327135 | Glass, Clock | 1 |
|
- | ||||
| 16 | 7201P001-60 | Gasket, Oven | 1 |
|
- | ||||
| 17 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 18 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 18 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 19 | 7701P003-60 | Handle, Door Lock | 1 |
|
- | ||||
| 20 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 21 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 21 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 22 | Y0507229 | Insert | 1 |
|
- | ||||
| 22 | 0537253 | Housing, Lamp | 1 |
|
- | ||||
| 22 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 23 | 7711P325-60 | Knob | 1 |
|
- | ||||
| 24 | 7711P267-60 | Knob, Selector | 1 |
|
- | ||||
| 25 | 7407P025-60 | Light, Signal | 1 |
|
- | ||||
| 25 | 7711P268-60 | Knob | 1 |
|
- | ||||
| 26 | 8002E002 | Catch | 1 |
|
- | ||||
| 27 | 8009P010-60 | Lever, Door Lock | 1 |
|
- | ||||
| 28 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 28 | 7407P025-60 | Light, Signal | 1 |
|
- | ||||
| 29 | 4009W028-20 | Lining, Inner Side | 1 |
|
- | ||||
| 30 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 30 | 4396923 | Pan, Broil (Replaces: Y0663215) | 1 |
|
Immediately | $ 52.04 | |||
| 31 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 32 | 7801P004-60 | Rack | 1 |
|
- | ||||
| 32 | 7722A095-60 | Panel, Side (blk) | 1 |
|
- | ||||
| 32 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 33 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 34 | 0749227 | Retainer, Lampguard | 1 |
|
- | ||||
| 35 | Y0766215 | Runner | 1 |
|
- | ||||
| 35 | 1986313 | Screw | 1 |
|
- | ||||
| 35 | 3406J007 | Runner, Outer | 1 |
|
- | ||||
| 36 | 7101P101-60 | Screw, Thermostat | 1 |
|
- | ||||
| 36 | 1986204 | Screw, Special | 1 |
|
- | ||||
| 36 | 3604F092-45 | Shield, Broil | 1 |
|
- | ||||
| 37 | 3604F055 | Shield, Switch | 1 |
|
- | ||||
| 37 | 3604F069-80 | Shield | 1 |
|
- | ||||
| 37 | 0787392 | Shield, Oven Lamp | 1 |
|
- | ||||
| 38 | 1013207 | Snap Ring, Oven Door Hinge | 1 |
|
- | ||||
| 39 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 39 | WPW10339879 | Strap, Tube (Replaces: 8019P003-60) | 1 |
|
$ 7.11 | ||||
| 40 | 8004P013-60 | Clip, Broil Element Support | 1 |
|
- | ||||
| 41 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 41 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 42 | 3807F195 | Support, Latch | 1 |
|
- | ||||
| 43 | 7403P096-60 | Switch, Hi-limit | 1 |
|
- | ||||
| 43 | 3807F193 | Support, Door Lock Switch | 1 |
|
- | ||||
| 44 | 7403P045-60 | Switch, Door Lock | 1 |
|
- | ||||
| 44 | 7403P019-60 | Switch, Light | 1 |
|
- | ||||
| 45 | 7403P037-60 | Switch, Selector | 1 |
|
- | ||||
| 46 | W11122006 | Switch, Surface Element (6``) (Replaces: 7403P070-60) | 1 |
|
$ 145.12 | ||||
| 46 | W11122006 | Switch, Inf. Control (Replaces: 7403P074-60) | 1 |
|
$ 145.12 | ||||
| 47 | 7404P033-60 | Thermostat | 1 |
|
- | ||||
| 49 | 7720P101-60 | Trim | 1 |
|
- | ||||
| 49 | 7720P102-60 | Trim | 1 |
|
- | ||||
| 50 | 7746P026-60 | Trim, Main Top (right) | 1 |
|
- | ||||
| 50 | 7720P046-60 | Trim, Main Top (left) | 1-19 |
|
- | ||||
| 50 | 7746P025-60 | Trim, Main Top (left) | 20 |
|
- | ||||
| 50 | 7720P049-60 | Trim, Main Top (right) | 1-19 |
|
- | ||||
| 51 | 8026A009-60 | Tube, Oven Vent | 1 |
|
- |
