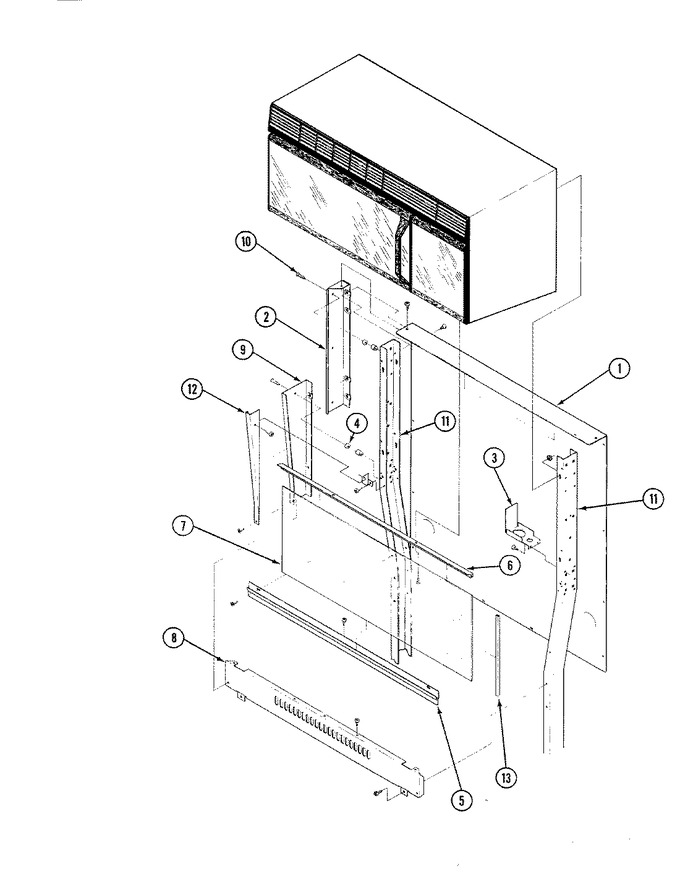

01 - Body (lower)
02 - Body (upper)
03 - Control Panel
04 - Door Assembly (lower)
05 - Door Assembly (upper)
06 - Oven (upper)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F054-20 | Back, Upper Main | 1 |
|
- | ||||
| 1 | 3804F043-45 | Bracket, Side Panel (lt) | 1 |
|
- | ||||
| 2 | 3804F044-45 | Bracket, Side Panel (rt) | 1 |
|
- | ||||
| 3 | 3818F029-51 | Channel, Oven Support | 1 |
|
- | ||||
| 4 | 7112P022-60 | Clip, Pushon | 1 |
|
- | ||||
| 5 | 7706P164-60 | Extrusion, Glass Bot | 1 |
|
- | ||||
| 6 | 7706P165-60 | Extrusion, Glass Top | 1 |
|
- | ||||
| 7 | 7902P147-60 | Glass, Backsplash | 1 |
|
- | ||||
| 8 | 2620W023-81 | Panel, Bkgd Lower | 1 |
|
- | ||||
| 9 | 2618F043-30 | Panel, Side Up | 1 |
|
- | ||||
| 9 | 2618F044-30 | Panel, Side Up Rt | 1 |
|
- | ||||
| 9 | 2618F042-30 | Panel, Side Up Bt | 1 |
|
- | ||||
| 9 | 2618F041-30 | Panel, Side Up Bt | 1 |
|
- | ||||
| 10 | 7101P103-60 | Screw | 1 |
|
- | ||||
| 11 | 0310227 | No Longer Available | 1 |
|
- | ||||
| 11 | 0310228-NLA | Channel | 1 |
|
- | ||||
| 12 | 7720P085-60 | Trim, Pnl Right | 1 |
|
- | ||||
| 12 | 7720P084-60 | Trim, Pnl Left | 1 |
|
- | ||||
| 13 | 7720P083-60 | Trim, Glass Retainer | 1 |
|
- |
