SELECT A DIAGRAM
01 - Body (lower)
02 - Body (upper)
03 - Control Panel
04 - Door Assembly (lower)
05 - Door Assembly (upper)
06 - Oven (upper)
SELECT A DIAGRAM
New Model Search:

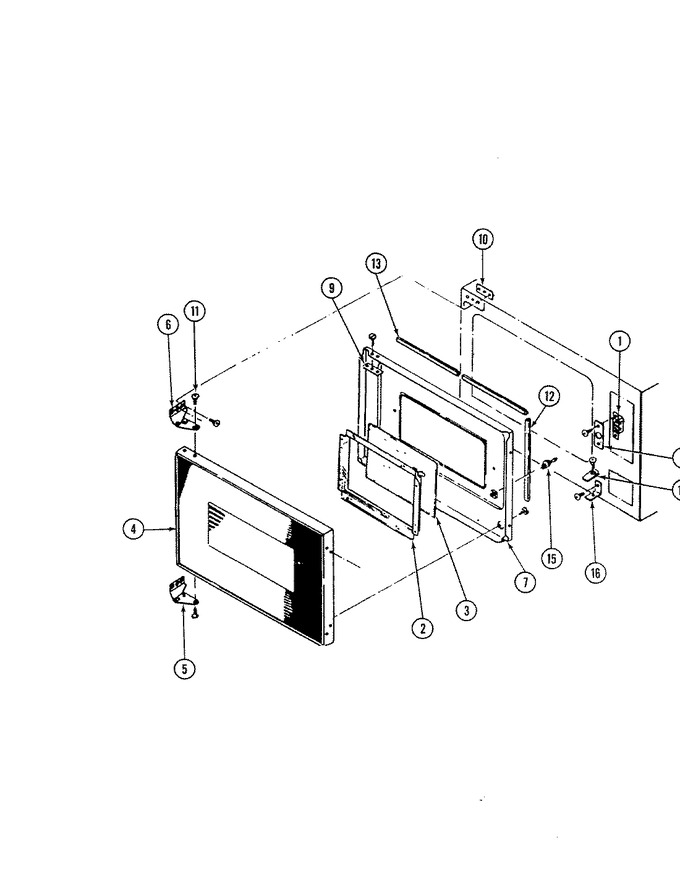

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8002P006-60 | Catch Female | 1 |
|
- | ||||
| 2 | 7706P177-60 | Frame, Window | 1 |
|
- | ||||
| 3 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 4 | 7902P101-60 | Glass, Window Outer | 1 |
|
- | ||||
| 4 | 7902P103-60 | Glass, Window | 1 |
|
- | ||||
| 4 | 7701P010-60 | Handle, Door | 1 |
|
- | ||||
| 5 | 7106P004-60 | Hinge | 1 |
|
- | ||||
| 6 | 7106P009-60 | Hinge | 1 |
|
- | ||||
| 7 | 2422H082 | Lining, Ovn Door | 1 |
|
- | ||||
| 8 | 8002P006-60 | Catch Female | 1 |
|
- | ||||
| 9 | 8010P013-60 | Plate, Control | 1 |
|
- | ||||
| 10 | 8010P014-60 | Plate, Control | 1 |
|
- | ||||
| 11 | 7101P019-60 | Screw, Dr Lck Hndl | 1 |
|
- | ||||
| 11 | WP4159193 | Screw, Dr Lock Handl (Replaces: 1986346) | 1 |
|
$ 4.29 | ||||
| 12 | 7212P005-60 | Seal | 1 |
|
- | ||||
| 13 | 7212P007-60 | Seal, Door (vertical) | 1 |
|
$ 47.10 | ||||
| 14 | 8004P002-60 | Support | 1 |
|
- | ||||
| 15 | 8024P001-60 | Strike, Male | 1 |
|
- | ||||
| 16 | 8004P002-60 | Support | 1 |
|
- |
