SELECT A DIAGRAM
01 - Body (lower)
02 - Body (upper)
03 - Control Panel
04 - Door Assembly (lower)
05 - Door Assembly (upper)
06 - Oven (upper)
SELECT A DIAGRAM
New Model Search:

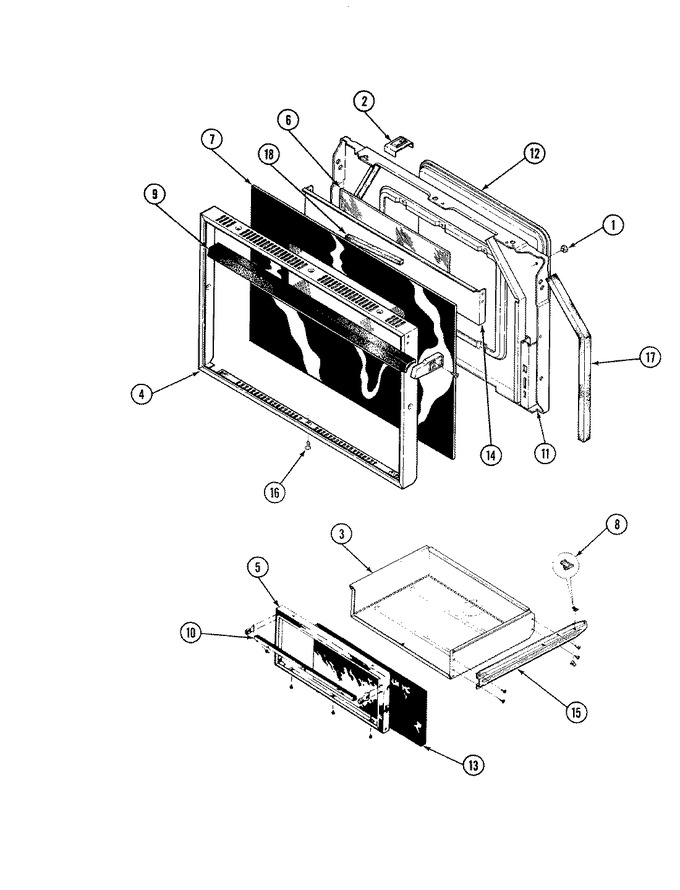

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8002P014-60 | Catch | 1 |
|
- | ||||
| 1 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 3405F008-20 | Drawer Assy. | 1 |
|
- | ||||
| 4 | 7706P178-60 | Frame, Door | 1 |
|
- | ||||
| 5 | 7706P180-60 | Frame | 1 |
|
- | ||||
| 6 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 7 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 8 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 8 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 9 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 10 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 11 | 2422H082 | Lining, Ovn Door | 1 |
|
- | ||||
| 12 | 2410W027-12 | Pad Assy, Ov Dr W/w | 1 |
|
- | ||||
| 13 | 2416F019-71 | Panel, Svc Dr White | 1 |
|
- | ||||
| 14 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 15 | 3406J007 | Runner, Outer | 1 |
|
- | ||||
| 15 | Y0766215 | Runner | 1 |
|
- | ||||
| 16 | 7101P013-60 | Screw, Special | 1 |
|
- | ||||
| 17 | 7208P013-60 | Seal, Foam Tape | 1 |
|
- | ||||
| 18 | 7208P007-60 | Seal, Silastic | 1 |
|
- | ||||
| 18 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 18 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 |
