01 - Body (lower)

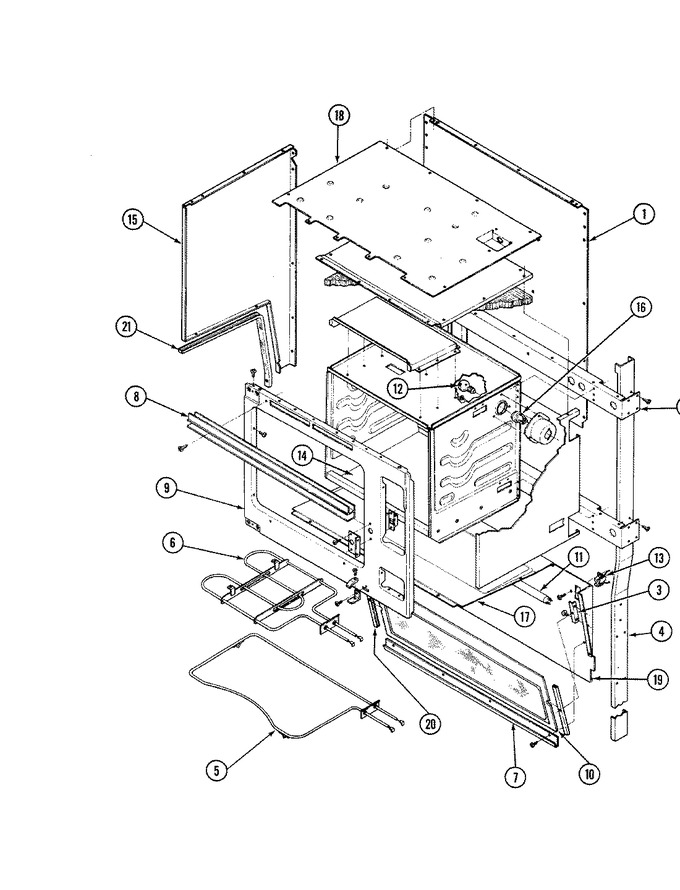

02 - Body (upper)
03 - Control Panel
04 - Door Assembly (lower)
05 - Door Assembly (upper)
06 - Oven (upper)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7412P005-60 | Ballast | 1 |
|
- | ||||
| 1 | 4002F035-20 | Back, Main | 1 |
|
- | ||||
| 2 | 0277250 | Brace | 1 |
|
- | ||||
| 3 | 0284290 | Bracket, Glass Support | 1 |
|
- | ||||
| 4 | 0310226-NLA | Channel | 1 |
|
- | ||||
| 4 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 5 | 7406P009-60 | Element, Bake | 1 |
|
- | ||||
| 6 | 7406P002-60 | Element, Broil | 1 |
|
- | ||||
| 7 | 7706P014-60 | Extrusion, Glass Ret | 1 |
|
- | ||||
| 8 | 7706P035-60 | Extrusion, Vent | 1 |
|
- | ||||
| 9 | 2201F033-23 | Front, Oven | 1 |
|
- | ||||
| 10 | 7902P011-60 | Glass, Backguard | 1 |
|
- | ||||
| 11 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 1 |
|
Immediately | $ 121.45 | |||
| 12 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 13 | 7408P006-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 14 | Y0606393 | Lining, Oven Btm. (w/out ``l``) | 1 |
|
- | ||||
| 15 | 0801247N | Panel, Side | 1 |
|
- | ||||
| 15 | 7801P008-60 | Rack | 1 |
|
- | ||||
| 15 | 0801248N | Panel, Side | 1 |
|
- | ||||
| 15 | 7408P001-60 | Recept, Oven Light | 1 |
|
- | ||||
| 16 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 17 | 7415P001-60 | Starter | 1 |
|
- | ||||
| 17 | 3804F091-20 | Retainer, Bottom Insul | 1 |
|
- | ||||
| 18 | 0902284 | Top, Main | 1 |
|
- | ||||
| 19 | 2612F026-32 | Panel, Backsplash | 1 |
|
- | ||||
| 20 | 1916936 | Trim | 1 |
|
- | ||||
| 21 | 7720P101-60 | Trim | 1 |
|
- | ||||
| 21 | 1916266 | Trim | 1 |
|
- | ||||
| 21 | 7720P102-60 | Trim | 1 |
|
- |
