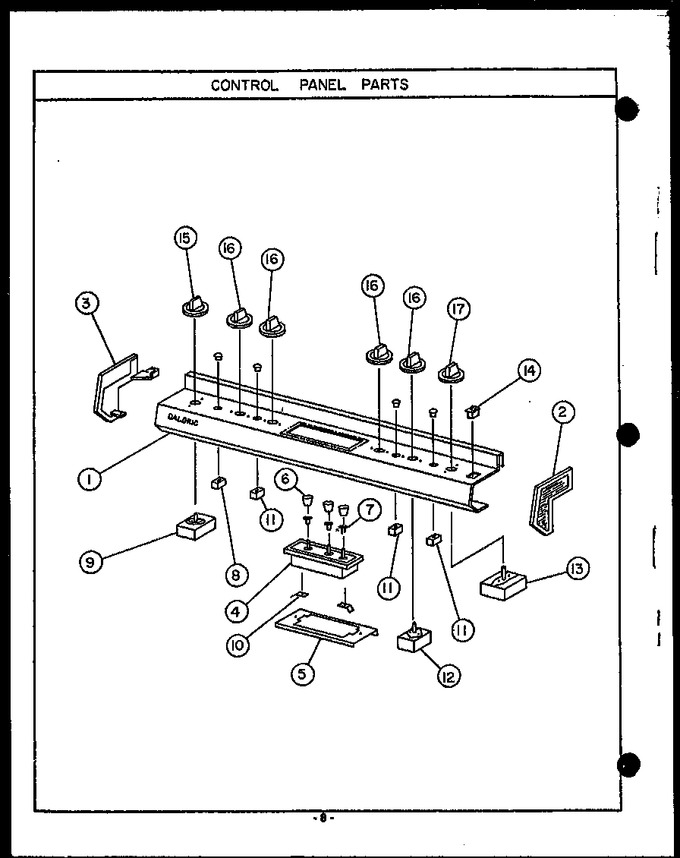

01 - Control Panel Parts
02 - Electrical Components
03 - Lower Oven Cabinet Assy
04 - Oven Door Parts
05 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0058689 | Control Panel |
|
- | |||||
| 2 | 0063192 | End Cap, Rh (chrome) |
|
- | |||||
| 3 | 0063191 | End Cap, Lh (chrome) |
|
- | |||||
| 4 | 0061535 | Clock, Automatic |
|
- | |||||
| 5 | 0061534 | Mtg. Bracket, Clock |
|
- | |||||
| 6 | Y0042633 | Knob, Clock W/o Spring |
|
- | |||||
| 7 | Y0061484 | Bushing, Shaft,black Nylon |
|
- | |||||
| 8 | Y0058453 | Indicator Light |
|
- | |||||
| 9 | 0060524 | Control, Elec Thermostat |
|
- | |||||
| 10 | Y0042124 | Terminal Adaptor Ring To Make |
|
- | |||||
| 11 | 0065822 | Light Indicator |
|
- | |||||
| 12 | 0071745 | Switch, Infinite |
|
- | |||||
| 13 | Y0063008 | Switch, Selector |
|
- | |||||
| 14 | Y0063997 | Switch, Rocker |
|
- | |||||
| 15 | 0059193 | Knob, Oven Control |
|
- | |||||
| 16 | 0058471 | Knob, Top Element |
|
- | |||||
| 17 | 0060181 | Knob, Selector Assy |
|
- | |||||
| NI | Y0300130 | Wire Harness, Main |
|
- |
