SELECT A DIAGRAM

01 - Control Panel Parts


02 - Electrical Components


03 - Lower Oven Cabinet Assy

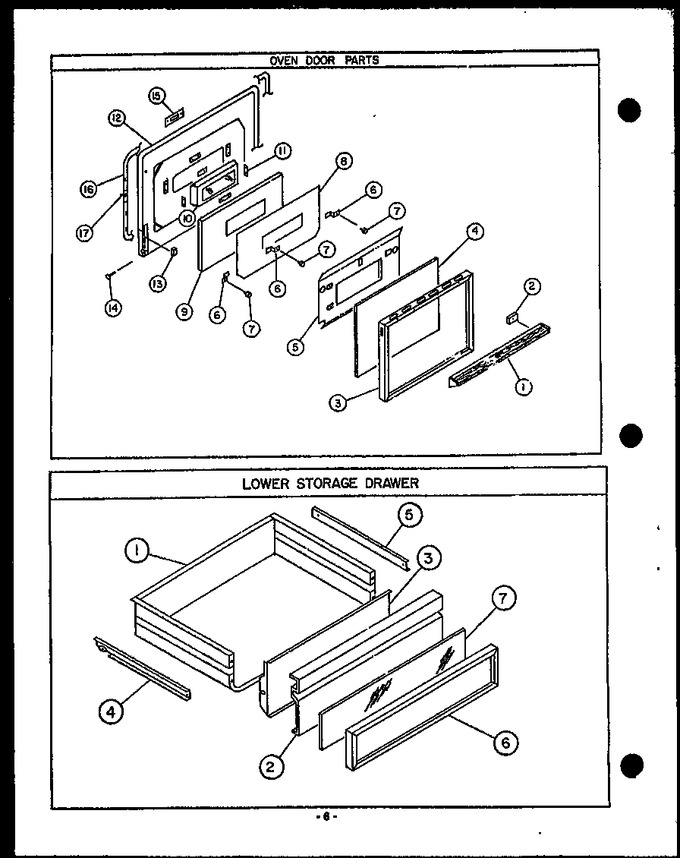

04 - Oven Door Parts


05 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0061234		Drawer Assembly		Appelez-nous	-
1	0068150		Handle, Door		Appelez-nous	-
2	059499B		Panel, Drawer		Appelez-nous	-
2	Y0079978		Spacer Door Handle		Appelez-nous	-
3	0063804		Frame, Door, Black		Appelez-nous	-
3	0061930		Sub 57441cg, Drawer Panel		Appelez-nous	-
4	Y0561254030		Runner, Storage Drawer, L.h.		Appelez-nous	-
4	Y0063650		Panel, Black Glass		Appelez-nous	-
5	0061255		Drawer Track Rh		Appelez-nous	-
5	W10125477		Air Baffle		Appelez-nous	-
6	Y0062439		Support Bracket, Glass		Appelez-nous	-
6	0059498		Door Panel Frame, Black		Appelez-nous	-
7	Y0063661		Bumper, Oven Door		Appelez-nous	-
7	Y0063501		Panel, Black Glass		Appelez-nous	-
8	Y0063656		Plate, Insulation		Appelez-nous	-
9	0062614		Insulation,door-sub Backer		Appelez-nous	-
10	0041491		Window Assy		Appelez-nous	-
11	Y0052629		Retainer, Door Glass		Appelez-nous	-
12	0063517		Sub 63517y, Door Backer		Appelez-nous	-
13	Y0060247		Bumper, Rubber		Appelez-nous	-
14	0091632		Rivet		Appelez-nous	-
15	Y0052039		Latch Plate		Appelez-nous	-
16	0071637		Dr. Gasket		Appelez-nous	-
17	0068429		Clip, Tinnerman		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
