01 - Control Panel Parts


02 - Electrical Components

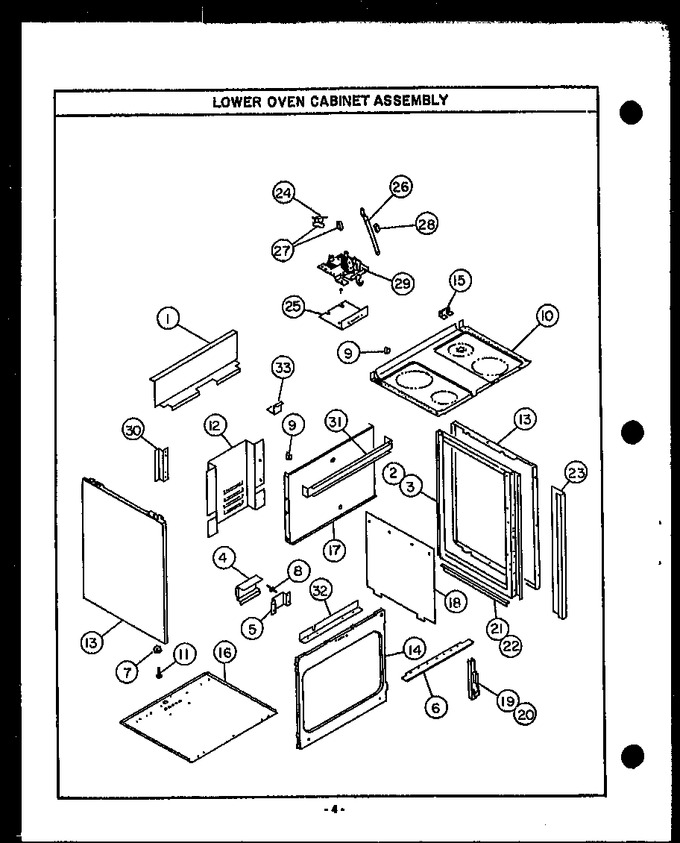

03 - Lower Oven Cabinet Assy


04 - Oven Door Parts


05 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0059435		Cover Plate, Rear		Appelez-nous	-
2	Y0061231		Sub 61231cg Frame Side Pnl R H		Appelez-nous	-
3	0061230		Side Frame-l.h.		Appelez-nous	-
4	Y0060245		Cover, Control Board		Appelez-nous	-
5	Y0060246		Mtg Bracket, Control Board		Appelez-nous	-
6	0062750		Sub 62750cg, Filler Front Fram		Appelez-nous	-
7	0076204		Retainer Nut		Appelez-nous	-
8	0060237		Support, Circ Board		Appelez-nous	-
9	Y0091587		Cable, Clip Esm		Appelez-nous	-
10	059456Y		Sub 59456cg, Drip Baffle		Appelez-nous	-
11	Y0062362		Leg, Leveling		Appelez-nous	-
12	Y0059434		Cover Box, Wiring		Appelez-nous	-
13	W10124847		Panel, Main End - R.h. - Almon		Appelez-nous	-
13	W10124846		Panel, Main End - R.h. - Almon		Appelez-nous	-
14	Y00000000		See Note Front Frame -- (not Replaceable)		Appelez-nous	-
15	Y0066374		Hinge, Lower, Main Top		Appelez-nous	-
16	0091309		Retainer		Appelez-nous	-
17	Y0058786		Rear Panel		Appelez-nous	-
18	Y0058952		Insulation Retainer, Side		Appelez-nous	-
19	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
20	Y0066952		Kit, Door Hinge (lh-hs)		Appelez-nous	-
21	0061252		Drawer Track, Rh.		Appelez-nous	-
22	0061253		Track, Storage Drawer, Lh		Appelez-nous	-
23	Y0058636		Trim, Side Panel		Appelez-nous	-
24	Y0065780		Switch, Clean Circuit				$ 11.77
25	0068101		Bracket, Latch Mounting		Appelez-nous	-
26	Y0063141		Latch Arm (chrome)		Appelez-nous	-
27	Y0091523		Insulation, Esm		Appelez-nous	-
28	Y0067844		Knob, Latch - Black		Appelez-nous	-
29	0059073		Latch, Oven Door		Appelez-nous	-
30	Y0058785		Cover, Sensor Harness		Appelez-nous	-
31	Y0071273		Mounting Channel		Appelez-nous	-
32	Y0058943		Heat Shield, Clock		Appelez-nous	-
33	0061384		Bracket, Switch Mtg.		Appelez-nous	-
NI	0059798		Plug Button		Appelez-nous	-
NI	Y0068091		Bracket, Switch Mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
