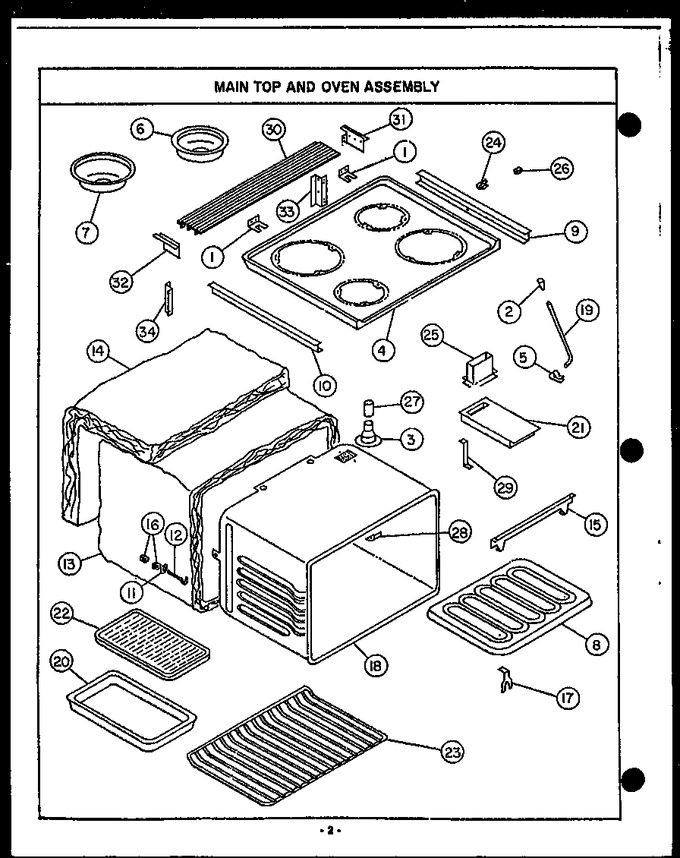

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0059260		Hinge, Upper Main Top		Appelez-nous	-
2	Y0042002		Rod Tip, Rubber		Appelez-nous	-
3	Y0063337		Smoke Eliminator		Appelez-nous	-
4	W10124573		Main Top White		Appelez-nous	-
4	059490K		Main Top		Appelez-nous	-
4	W10124572		Main Top Almond		Appelez-nous	-
5	Y0041869		Timerman		Appelez-nous	-
6	WPW10196406		Bowl, Drip (6`` W/hole-chr)   (Replaces: Y0058591)			Immediately	$ 12.05
7	X042142		Pkg. 160, B.b. 8``		Appelez-nous	-
8	Y0061781		Reflector, Broil Element		Appelez-nous	-
9	Y0061499		Top Trim R.h		Appelez-nous	-
10	0061498		Trim Main Top, L.h., Bright Fi		Appelez-nous	-
11	Y0071876		Washer		Appelez-nous	-
12	Y0091536		Hook Bolt		Appelez-nous	-
13	Y0062781		Sub 41966, Insulation		Appelez-nous	-
14	Y0062780		Sub 41966, Insulation		Appelez-nous	-
15	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
16	0071881		Sub 41847, Hex Nut		Appelez-nous	-
17	0061556		Bracket, Mounting		Appelez-nous	-
18	W10124602		Ovenshell Assembly, Gray		Appelez-nous	-
19	Y0042737		Prop Rod Gt-483-583		Appelez-nous	-
20	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
21	Y0060627		Flue Box		Appelez-nous	-
22	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
23	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
24	0071203		Wire Clamp		Appelez-nous	-
25	Y0059431		Flue Box, Rear		Appelez-nous	-
26	Y0096604		Nut, Type ``u``		Appelez-nous	-
27	0060633		Tube, Vent Extension		Appelez-nous	-
28	0060939		Chip Cover		Appelez-nous	-
29	Y0060312		Bracket, Support		Appelez-nous	-
30	Y0059423		Lo Back Rail		Appelez-nous	-
31	0059425		End Cap R.h. Bk. Rail		Appelez-nous	-
32	Y0059424		End Cap, Lh, Bk.rail		Appelez-nous	-
33	0061542		Support, Backguard, Rh		Appelez-nous	-
34	0061541		Support, Backguard, Lh		Appelez-nous	-
NI	Y0301219		Lo Backrail 4``		Appelez-nous	-
