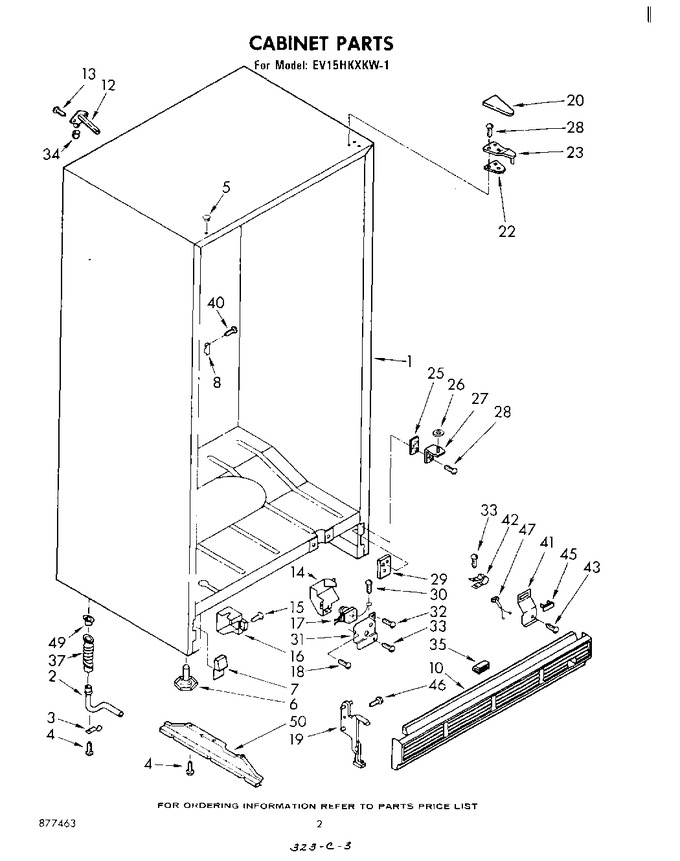

02 - Cabinet
03 - Door , Lit/optional
04 - Unit
05 - Liner
06 - Breaker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 841646 | Extension Fitting |
|
- | |||||
| 3 | 841648 | Clip, Drain |
|
- | |||||
| 4 | 489050 | Screw, 8-32 X 1/2 |
|
$ 623.30 | |||||
| 5 | 989195 | Plug, Hole (3) (almond) |
|
- | |||||
| 5 | 989877 | Plug, Hole (3) (new Avocado) |
|
- | |||||
| 5 | 989876 | Plug, Hole (3) (new Gold) |
|
- | |||||
| 5 | 989875 | Plug, Hole (3) (coffee) |
|
- | |||||
| 5 | 842031 | Plug, Hole (3) (white) |
|
- | |||||
| 6 | W11117769 | Leveler (2) (Replaces: 848392) |
|
Immediately | $ 16.61 | ||||
| 7 | 838535 | Filler Grille (white) |
|
- | |||||
| 7 | 989931 | Filler Grille (almond) |
|
- | |||||
| 7 | 989928 | Filler, Grille (coffee) |
|
- | |||||
| 7 | 989929 | Filler, Grille (new Gold) |
|
- | |||||
| 7 | 989930 | Filler, Grille (new Avocado) |
|
- | |||||
| 8 | 991992 | Bracket, Strike |
|
- | |||||
| 10 | 942606 | Grille, Exterior (almond) |
|
- | |||||
| 10 | 942605 | Grille, Exterior (new Avocado) |
|
- | |||||
| 10 | 942604 | Grille, Exterior (new Gold) |
|
- | |||||
| 10 | 942603 | Grille, Exterior (coffee) |
|
- | |||||
| 10 | 981088 | Grille, Exterior (white) |
|
- | |||||
| 12 | WP2196157 | Fitting, Water Line (Replaces: 836489) |
|
Immediately | $ 10.79 | ||||
| 13 | WP98165 | Screw (Replaces: 488401) |
|
$ 7.20 | |||||
| 14 | 548708 | Guard, Timer |
|
- | |||||
| 15 | WP488729 | Screw, 6-20 X 1/2 (Replaces: 486993) |
|
Immediately | $ 7.01 | ||||
| 16 | 549947 | Box, Junction |
|
- | |||||
| 17 | W10822278 | Timer, Defrost (Replaces: 851160) |
|
Immediately | $ 31.00 | ||||
| 18 | WP965173 | Screw 8 X 3/8 (Replaces: 487415) |
|
Immediately | $ 9.65 | ||||
| 19 | 844614 | Support, Grille (2) |
|
- | |||||
| 20 | 989897 | Cover, Hinge (new Avocado) |
|
- | |||||
| 20 | 989194 | Cover, Hinge (almond) |
|
- | |||||
| 20 | 989896 | Cover, Hinge (new Gold) |
|
- | |||||
| 20 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 20 | 989895 | Cover, Hinge (coffee) |
|
- | |||||
| 22 | 836151 | Shim, Hinge |
|
- | |||||
| 23 | 842038 | Hinge, Top |
|
- | |||||
| 25 | 836196 | Shim, Hinge |
|
- | |||||
| 26 | WP487802 | Washer (Replaces: 488723) |
|
Immediately | $ 7.12 | ||||
| 27 | 836686 | Hinge (bottom) |
|
- | |||||
| 28 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 7.07 | |||||
| 28 | 488949 | Screw (repair) |
|
- | |||||
| 29 | 836162 | Tap Plate |
|
- | |||||
| 30 | WP489128 | Screw, 8-32 X .375 (Replaces: 488500) |
|
$ 9.79 | |||||
| 31 | 548705 | Plate, Timer |
|
- | |||||
| 32 | 488424 | Screw, 6-20 X 3/8 |
|
- | |||||
| 33 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 34 | WP487996 | Cap (Replaces: 487996) |
|
$ 7.43 | |||||
| 35 | 546131 | Bumper (2) |
|
- | |||||
| 37 | 981147 | Fitting, Drain |
|
- | |||||
| 40 | WP489128 | Screw, 8-32 X .375 (Replaces: 488500) |
|
$ 9.79 | |||||
| 41 | 842250 | Bracket, Pilot Light |
|
- | |||||
| 42 | 653037 | Cleat, Cord |
|
- | |||||
| 43 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 45 | 530584 | Light, Pilot |
|
- | |||||
| 46 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 47 | 549538 | Pilot Light Wire Assembly |
|
- | |||||
| 49 | 981148 | Drain Ferrule |
|
- | |||||
| 50 | 843164 | Drain Pan Slide (2) |
|
- |
