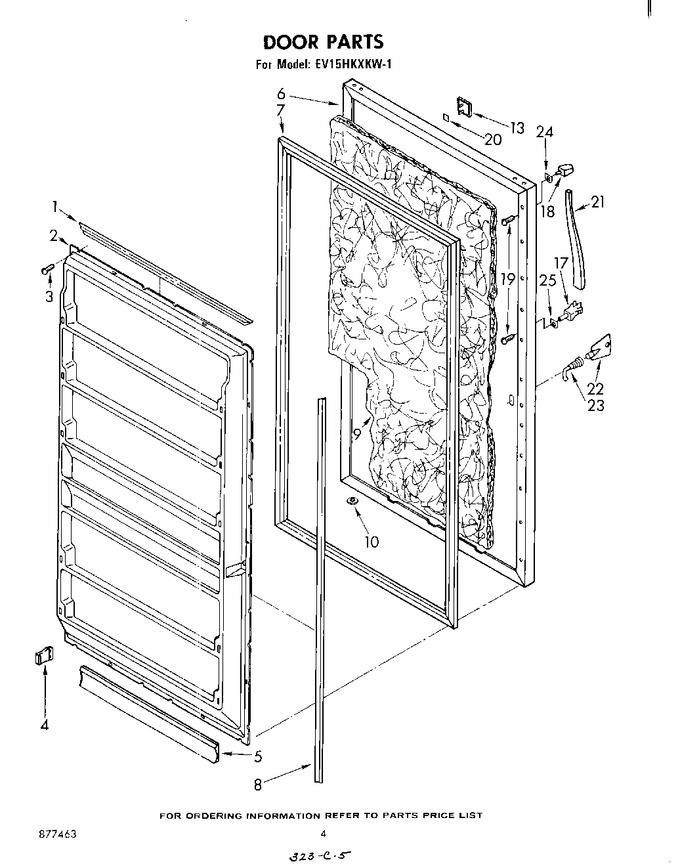

SELECT A DIAGRAM

02 - Cabinet


03 - Door , Lit/optional


04 - Unit


05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	836115		Retainer, Gasket (2)		Appelez-nous	-
2	942673		Panel		Appelez-nous	-
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	943151		Retainer, Trim (8)		Appelez-nous	-
5	984916		Trim, Shelf		Appelez-nous	-
6	934995		Door, Exterior (white)		Appelez-nous	-
6	934999		Door, Exterior (almond)		Appelez-nous	-
7	2188439A		Gasket, Magnetic   (Replaces: 942674)		Appelez-nous	-
8	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
9	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
10	534927		Plug, Hole (2)		Appelez-nous	-
13	945107		Nameplate		Appelez-nous	-
17	982947		End, Handle (bottom)		Appelez-nous	-
18	982948		End, Handle (top)		Appelez-nous	-
19	488818		Screw				$ 42.82
20	991259		Tape Strip		Appelez-nous	-
21	982978		Handle		Appelez-nous	-
22	941380		Key		Appelez-nous	-
23	941379		Lock		Appelez-nous	-
24	941918		Shim, Handle End		Appelez-nous	-
25	877463		List, Parts		Appelez-nous	-
25	876370		Insulation, Fiberglass (63.50`` X 35.50`` 2.63``)   (Replaces: 978941)				$ 208.40
25	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
25	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
25	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
25	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
25	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
25	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
25	799832		Kit, Porcelain Repair		Appelez-nous	-
25	942640		Guide, Use & Care		Appelez-nous	-
25	656493		Booklet, Freezing		Appelez-nous	-
25	942655		Energy Guide		Appelez-nous	-
25	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
25	941917		Shim, Handle End		Appelez-nous	-
25	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
25	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
25	799351		Thinner, Blend (1 Gal.)		Appelez-nous	-
25	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
25	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
25	876029		Kit, Slab Foam (30.0`` X 32.5`` X 1.5``) (2)		Appelez-nous	-
25	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
	511881		Xlacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
	206925		Xleveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	350930		Xenamel, White (12 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
