SELECT A DIAGRAM
02 - Cabinet
03 - Door , Lit/optional
04 - Unit
05 - Liner

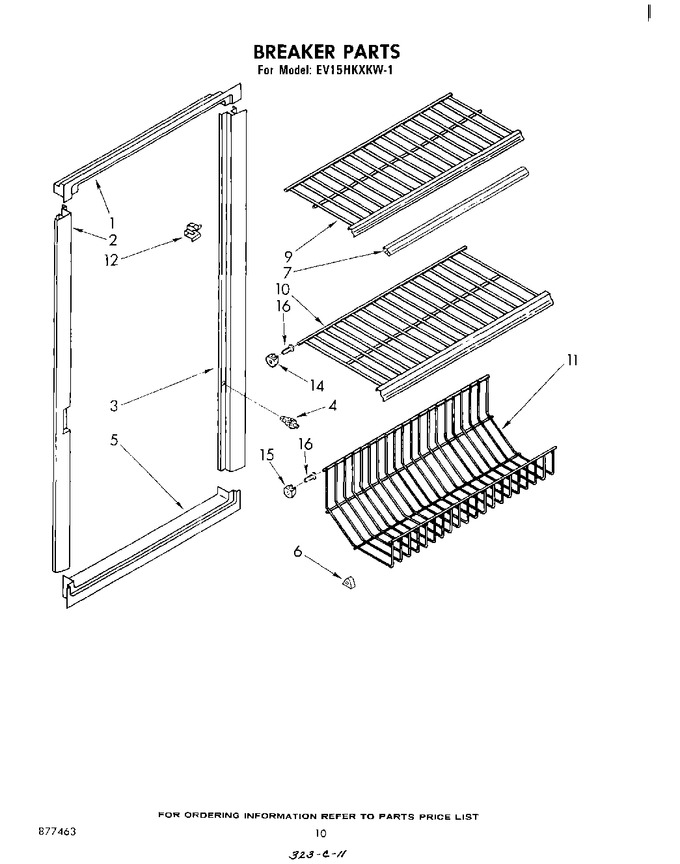

06 - Breaker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 940923 | Breaker, Top |
|
- | |||||
| 2 | 981082 | Breaker, L.s. |
|
- | |||||
| 3 | 836627 | Breaker, R.s. |
|
- | |||||
| 4 | 549191 | Switch, Light |
|
- | |||||
| 5 | 836176 | Breaker, Bottom |
|
- | |||||
| 6 | 216446 | Grommet (4) |
|
- | |||||
| 7 | 942631 | Trim, Shelf Front (2) |
|
- | |||||
| 9 | 983425 | Shelf (2) |
|
- | |||||
| 10 | 983426 | Shelf (1) |
|
- | |||||
| 11 | 934901 | Trivet |
|
- | |||||
| 12 | 939139 | Clip (2) |
|
- | |||||
| 14 | 836492 | Stud, Shelf (l.s.) |
|
- | |||||
| 15 | 984394 | Stud |
|
- | |||||
| 16 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487109) |
|
Immediately | $ 7.01 |
