02 - Cabinet
03 - Door , Lit/optional
04 - Unit
05 - Liner

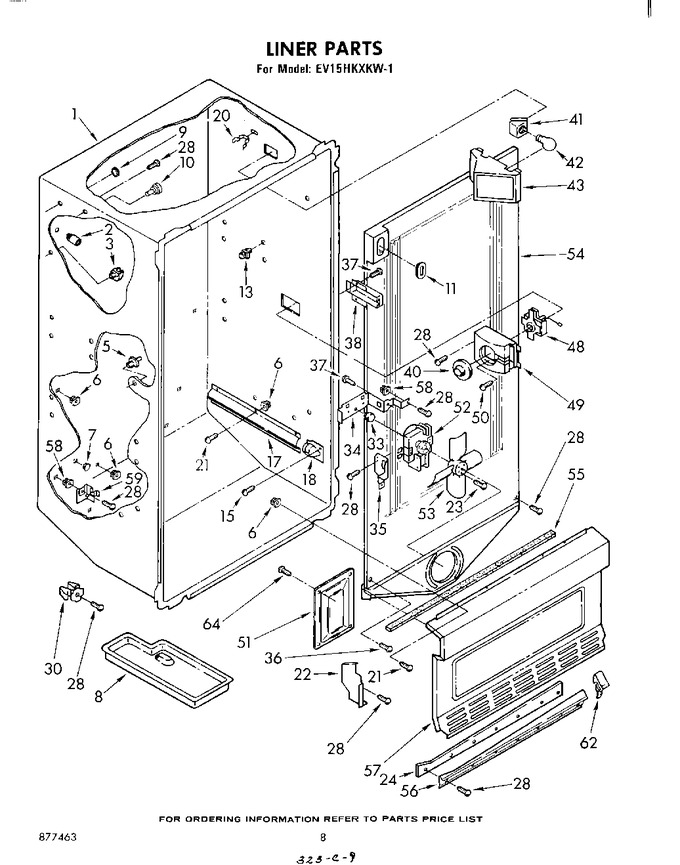

06 - Breaker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 512792 | Spacer (9) |
|
- | |||||
| 3 | 523264 | Stud, L.s. (2) |
|
- | |||||
| 3 | 523263 | Stud, R.s. (3) |
|
- | |||||
| 5 | 529758 | Stud, Shelf (6) |
|
- | |||||
| 6 | 842339 | Grommet |
|
- | |||||
| 7 | 519890 | Plug, Hole (4) |
|
- | |||||
| 8 | 836205 | Tray, Evaporator |
|
- | |||||
| 9 | 659598 | Plug, Hole (2) |
|
- | |||||
| 10 | 850738 | Cap, Receptacle |
|
- | |||||
| 11 | 659776 | Plug, Hole |
|
- | |||||
| 13 | 651590 | Stud, Hook (2) |
|
- | |||||
| 15 | WP488729 | Screw, 8 X 1/2a (Replaces: 488783) |
|
Immediately | $ 7.01 | ||||
| 17 | 981085 | Cover, Tube |
|
- | |||||
| 18 | 839826 | Cover, Tube |
|
- | |||||
| 20 | 533998 | Clip, Speed (4) |
|
- | |||||
| 21 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.01 | ||||
| 22 | 981079 | Baffle, Evaporator (2) |
|
- | |||||
| 23 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 220.32 | |||||
| 24 | 981083 | Gasket, Drain Trough |
|
- | |||||
| 28 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 30 | 537095 | Clip, Expansion |
|
- | |||||
| 33 | 548268 | Grommet |
|
- | |||||
| 34 | 548264 | Bracket (single) |
|
- | |||||
| 35 | 548263 | Bracket (double) |
|
- | |||||
| 36 | 488876 | Screw, 8 X 1-1/8 |
|
- | |||||
| 37 | WP489128 | Screw, 8-32 X .375 (Replaces: 488500) |
|
$ 9.79 | |||||
| 38 | 836553 | Cover, Thermostat |
|
- | |||||
| 40 | 981928 | Knob |
|
- | |||||
| 41 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 99.14 | ||||
| 42 | 8009 | Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 43 | 848158 | Shield, Light |
|
- | |||||
| 48 | VF3 | Thermostat & Barrier Assembly (Replaces: 549092) |
|
$ 38.40 | |||||
| 49 | 843953 | Escutcheon, Thermostat |
|
- | |||||
| 50 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 488110) |
|
Immediately | $ 9.65 | ||||
| 51 | 984538 | Cover, Fan Motor |
|
- | |||||
| 52 | SM999 | Motor, Fan (Replaces: 549098) |
|
Immediately | $ 27.23 | ||||
| 53 | 839859 | Blade, Fan |
|
- | |||||
| 54 | 988097 | Cover, Fan Orifice |
|
- | |||||
| 55 | 659202 | Gasket |
|
- | |||||
| 56 | 981076 | Pan, Drain |
|
- | |||||
| 57 | 983675 | Cover, Evaporator |
|
- | |||||
| 58 | 538449 | Grommet, Screw (2) |
|
- | |||||
| 59 | 842436 | Evaporator Support (2) |
|
- | |||||
| 62 | 984549 | Extension, Drain Trough |
|
- | |||||
| 64 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 7.01 |
