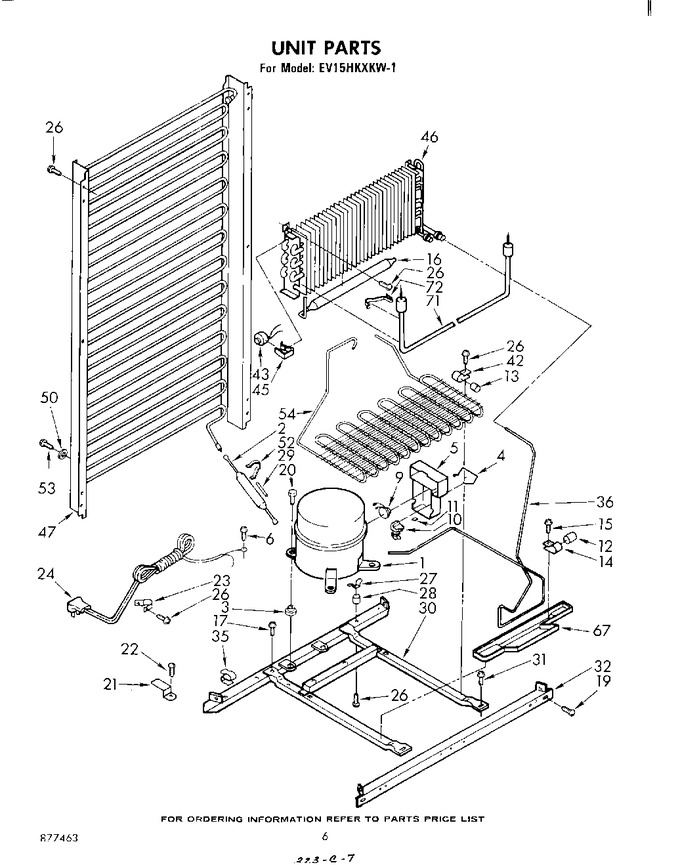

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	464082		Compressor		Appelez-nous	-
2	W10843121		Drier   (Replaces: 548504)			Immediately	$ 47.31
3	547283		Grommet (4)		Appelez-nous	-
4	531318		Spring		Appelez-nous	-
5	549945		Case		Appelez-nous	-
6	488474		Screw, 8-32 X 3/8		Appelez-nous	-
9	549041		Overload		Appelez-nous	-
10	989662		Relay		Appelez-nous	-
11	547272		Bumper		Appelez-nous	-
12	510769		Dampener		Appelez-nous	-
13	850194		Dampener		Appelez-nous	-
14	510716		Clamp Tube		Appelez-nous	-
15	WPW10141625		Screw   (Replaces: 488197)				$ 19.04
16	850596		Header & Tube Assembly		Appelez-nous	-
17	303776		Screw, 8-32 X .312 (ground)   (Replaces: 488879)		Appelez-nous	-
19	489340		Screw, 5/16-18 X 5/8   (Replaces: 488683)		Appelez-nous	-
20	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
21	653035		Clip, Plug		Appelez-nous	-
22	486899		Screw		Appelez-nous	-
23	549193		Clamp				$ 12.05
24	850626		Cord, Service		Appelez-nous	-
26	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
27	531086		Clamp (4)		Appelez-nous	-
28	513646		Grommet (4)		Appelez-nous	-
29	510446		Sleeve, Restrictor		Appelez-nous	-
30	548655		Frame		Appelez-nous	-
31	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
32	941699		Rail, Front		Appelez-nous	-
35	548745		Clip (2)		Appelez-nous	-
36	943327		Exchanger, Heat		Appelez-nous	-
42	515268		Clamp		Appelez-nous	-
43	WP4387489		Defrost, Bimetal   (Replaces: 989624)				$ 93.42
45	513584		Clamp		Appelez-nous	-
46	850594		Evaporator		Appelez-nous	-
47	938147		Condenser Assembly		Appelez-nous	-
50	204349		Bumper, Rubber		Appelez-nous	-
52	547637		Clamp		Appelez-nous	-
53	WP488729		Screw, 8 X 1/2a   (Replaces: 486993)			Immediately	$ 7.01
54	938355		Precooler Assembly		Appelez-nous	-
67	989269		Pan, Drip		Appelez-nous	-
71	989613		Heater, Defrost		Appelez-nous	-
72	978029		Valve Access (5/8``)				$ 93.85
72	978030		Valve, Access (3/4``)				$ 117.64
72	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
72	548459		Clip, Heater		Appelez-nous	-
72	549696		Clip, Heater (repair)		Appelez-nous	-
72	978026		Valve, Access (5/16``)			Immediately	$ 115.28
72	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
72	978028		Valve, Access (1/2)		Appelez-nous	-
