SELECT A DIAGRAM

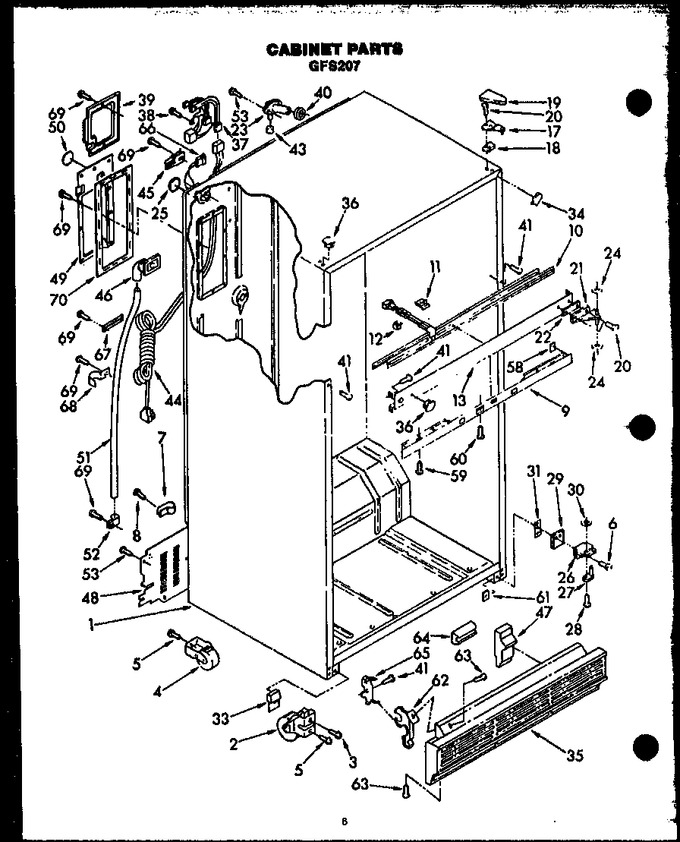

01 - Cabinet Parts


02 - Cabinet Parts


03 - Compartment Separator Parts


04 - Fz Door Parts


05 - Liner Parts


06 - Ref Door Parts


07 - Shelf Parts


08 - Unit Parts


09 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	0056723		Roller, Cabinet		Appelez-nous	-
3	0056235		Screw		Appelez-nous	-
4	0056722		Roller, Rear		Appelez-nous	-
5	Y0056520		Screw		Appelez-nous	-
6	Y0311133		Screw		Appelez-nous	-
9	Y0056909		Cover, Front Control		Appelez-nous	-
10	0056771		Heater, Mullion		Appelez-nous	-
11	0056821		Clip, Mullion Heater		Appelez-nous	-
12	Y0056654		Spacer		Appelez-nous	-
13	56769L		Center Rail - Almond		Appelez-nous	-
13	56769W		Center Rail - White		Appelez-nous	-
17	0311169		Hinge, Top		Appelez-nous	-
18	Y0311170		Hinge Shim		Appelez-nous	-
19	56624W		Cover, Hinge - White		Appelez-nous	-
19	56624L		Cover, Hinge - Almond		Appelez-nous	-
20	Y0311133		Screw		Appelez-nous	-
21	0056613		Hinge, Center		Appelez-nous	-
22	0056614		Shim, Center Hinge		Appelez-nous	-
24	0056517		Sub 56509, Washer		Appelez-nous	-
25	Y0311646		Hole Seal		Appelez-nous	-
26	Y0056921		Bracket, Bottom Hinge		Appelez-nous	-
27	56610		Manual, Operation		Appelez-nous	-
28	56531		Timer,230/50		Appelez-nous	-
29	Y0056617		Shim, Bottom Hinge Brkt.		Appelez-nous	-
30	56563		Hex Nut No.10-32 Nickel		Appelez-nous	-
31	Y0312754		Spacer		Appelez-nous	-
33	Y0312216		Corner Filler, Grill		Appelez-nous	-
34	56876W		Filler, Corner - White		Appelez-nous	-
34	56876L		Filler, Corner - Almond		Appelez-nous	-
35	Y0312204		Base Grille		Appelez-nous	-
36	56625L		Hole Plug-almond		Appelez-nous	-
36	56625W		Hole Plug - White		Appelez-nous	-
37	Y0311161		Cabinet Wiring Assy.		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: Y0056541)				$ 7.16
39	Y0056799		Cover, Wiring		Appelez-nous	-
