SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Parts


03 - Compartment Separator Parts


04 - Fz Door Parts


05 - Liner Parts

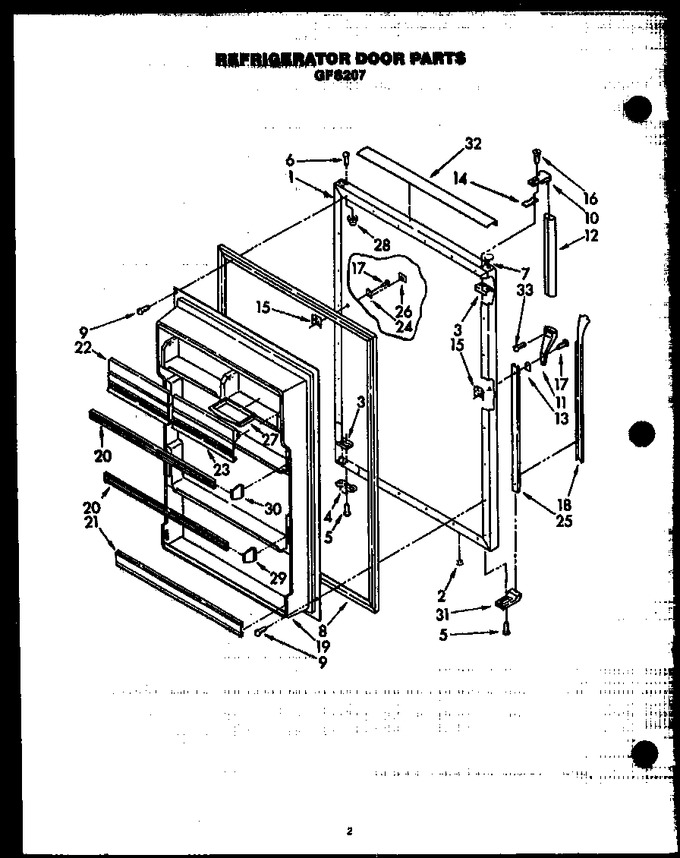

06 - Ref Door Parts


07 - Shelf Parts


08 - Unit Parts


09 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56782W		Panel, Ref Door - White		Appelez-nous	-
1	56782L		Panel, Ref Door - Almond		Appelez-nous	-
2	56583W		Hole Plug - White		Appelez-nous	-
2	56583L		Hole Plug - Almond		Appelez-nous	-
3	56678		Plate, Tap		Appelez-nous	-
4	0056922		Bracket, Door Stop		Appelez-nous	-
5	0056564		Screw		Appelez-nous	-
6	0056564		Screw		Appelez-nous	-
7	56626W		Hole Plug - White		Appelez-nous	-
7	56626L		Hole Plug - Almond		Appelez-nous	-
8	2188450A		Gasket, Refrig. Door   (Replaces: Y0056781)				$ 243.50
9	0056545		Screw		Appelez-nous	-
10	0056696		Handle End		Appelez-nous	-
11	0056860		End Cap, Center		Appelez-nous	-
12	Y0056983		Sub 56497, Handle Kit		Appelez-nous	-
13	Y0056633		Shim, Handle		Appelez-nous	-
14	0056679		Spacer, Door Handle		Appelez-nous	-
15	0056651		Anchor, Screw		Appelez-nous	-
16	0056567		Screw		Appelez-nous	-
17	56565		Rivet,pop		Appelez-nous	-
18	0057002		Insert, Door Handle		Appelez-nous	-
19	0056826		Panel, Inner Door		Appelez-nous	-
20	Y0056998		Trim, Inner Door		Appelez-nous	-
21	56999		Trim, Door		Appelez-nous	-
22	0057001		Door, Utility		Appelez-nous	-
23	57000		Door, Butter Compartment		Appelez-nous	-
24	Y0056831		Clip, Medallion		Appelez-nous	-
25	0056638		Retainer, Handle Insert		Appelez-nous	-
26	56888		Manual, Operation		Appelez-nous	-
27	Y0056577		Tray, Butter		Appelez-nous	-
28	Y0056571		Cap, Hinge Sleeve		Appelez-nous	-
29	Y0056827		End Cap, Door Trim		Appelez-nous	-
30	Y0056807		Endcap, Door Trim		Appelez-nous	-
31	0056809		End Cap, Insert Retainer		Appelez-nous	-
32	Y0057003		Trim, Refrig. Door		Appelez-nous	-
33	Y0310830		Screw		Appelez-nous	-
