Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0056917 Ladder, Shelf Appelez-nous -
2 Y0056916 Ladder, Shelf, Center Appelez-nous -
3 Y0056579 Screw Appelez-nous -
4 Y0056578 Screw Appelez-nous -
5 Y0056537 Screw Appelez-nous -
6 Y0056513 Screw Appelez-nous -
7 56879 Manual, Operation Appelez-nous -
8 Y0056993 Trim, Meat Pan Shelf Appelez-nous -
9 0056991 Cover, Crisper Appelez-nous -
10 Y0056947 Trim, Crisper Cover Appelez-nous -
11 0056803 Glass, Crisper Cover Appelez-nous -
12 56880 Manual, Operation Appelez-nous -
15 Y0056817 Support, Crisper Appelez-nous -
16 56878 Manual, Operation Appelez-nous -
17 Y0056818 Shelf, Freezer Appelez-nous -
19 56853 Pan, Crisper Appelez-nous -
20 0056997 Pan, Meat Appelez-nous -
22 Y0056622 Tray, Ice Appelez-nous -
23 Y0056820 Reflector, Shelf Appelez-nous -
32 Y0056926 Slide, Humidity Control Appelez-nous -
33 Y0056927 Housing, Humidity Control Appelez-nous -
36 0056992 Panel, Crisper Pan Front Appelez-nous -
38 Y0056925 Shelf Appelez-nous -
39 Y0056994 Trim, Shelf Appelez-nous -
40 0056995 Glass, Shelf Appelez-nous -
41 0056996 Reflector, Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

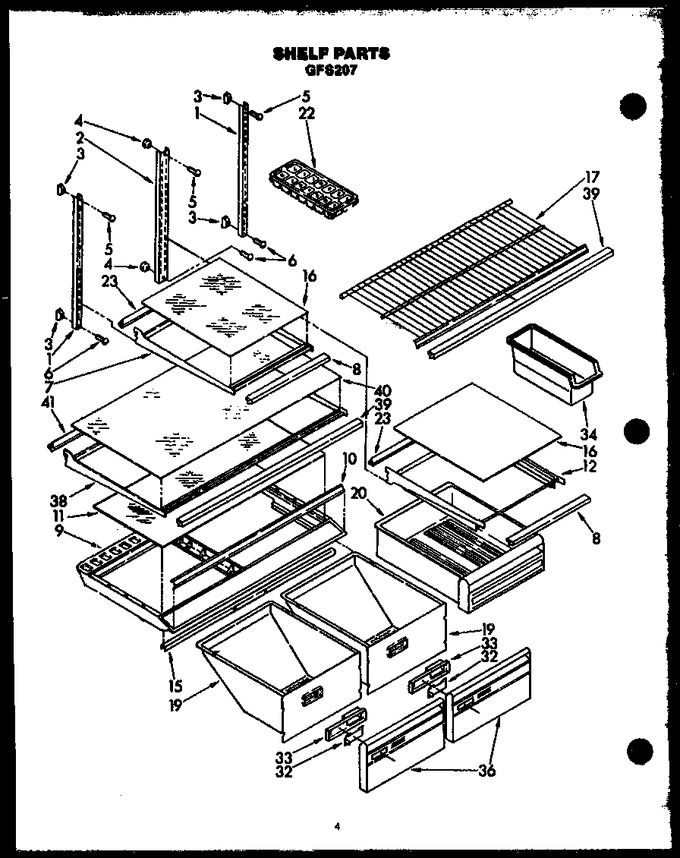

Diagram for GFS207/MN02
