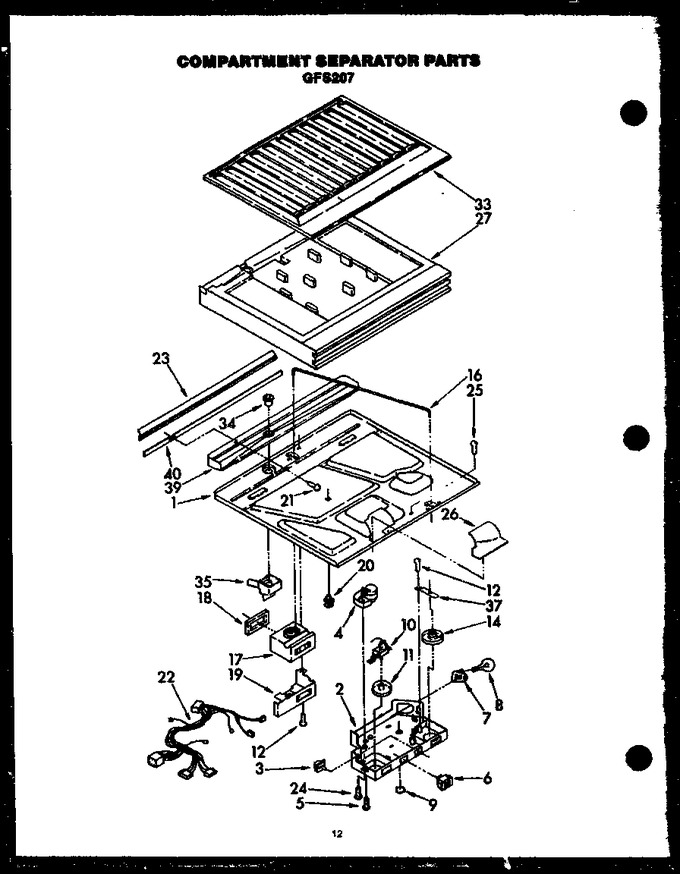

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0056773 | Separator, Bottom |
|
- | |||||
| 2 | Y0056774 | Box, Control |
|
- | |||||
| 3 | WP2149705 | Switch, Light (Replaces: Y0056777) |
|
Immediately | $ 36.36 | ||||
| 4 | Y0056768 | Sub 57052, Timer Defrost |
|
- | |||||
| 5 | Y0056530 | Screw, 6-20 X 1/2 |
|
- | |||||
| 6 | Y0056766 | Switch, Toggle |
|
- | |||||
| 7 | 56628 | Manual, Operation |
|
- | |||||
| 8 | 8009 | Sub 42175, Lamp,oven (Replaces: Y0056713) |
|
Immediately | $ 16.80 | ||||
| 9 | Y0056653 | Hole Plug |
|
- | |||||
| 10 | 1123394 | Thermostat (Replaces: Y0056808) |
|
$ 188.53 | |||||
| 11 | 0056923 | Knob, Thermostat |
|
- | |||||
| 12 | 56508 | Assy,knob-timer |
|
- | |||||
| 14 | Y0056924 | Knob, Air Control |
|
- | |||||
| 16 | Y0056776 | Rod, Connecting |
|
- | |||||
| 17 | Y0056915 | Air Diffuser |
|
- | |||||
| 18 | Y0311181 | Gasket, Air |
|
- | |||||
| 19 | Y0056847 | Cover, Air Diffuser |
|
- | |||||
| 20 | Y0056580 | Stud, Hook |
|
- | |||||
| 21 | Y0056568 | Screw |
|
- | |||||
| 22 | Y0056936 | Wiring Assy., Control Box |
|
- | |||||
| 23 | 56914 | Assy, Wiring Harness |
|
- | |||||
| 24 | WP250830 | Screw, 8-32 X 1/2 (Replaces: Y0056541) |
|
$ 7.16 | |||||
| 25 | Y0056522 | Sub 56513, Screw |
|
- | |||||
| 26 | Y0056662 | Insulation, Filler |
|
- | |||||
| 27 | Y0056778 | Insulation, Separator |
|
- | |||||
| 33 | Y0056779 | Separator, Top |
|
- | |||||
| 34 | Y0056670 | Drain Insert |
|
- | |||||
| 35 | Y0056640 | Cup, Drain |
|
- | |||||
| 37 | Y0056775 | Bracket, Control Knob |
|
- |
