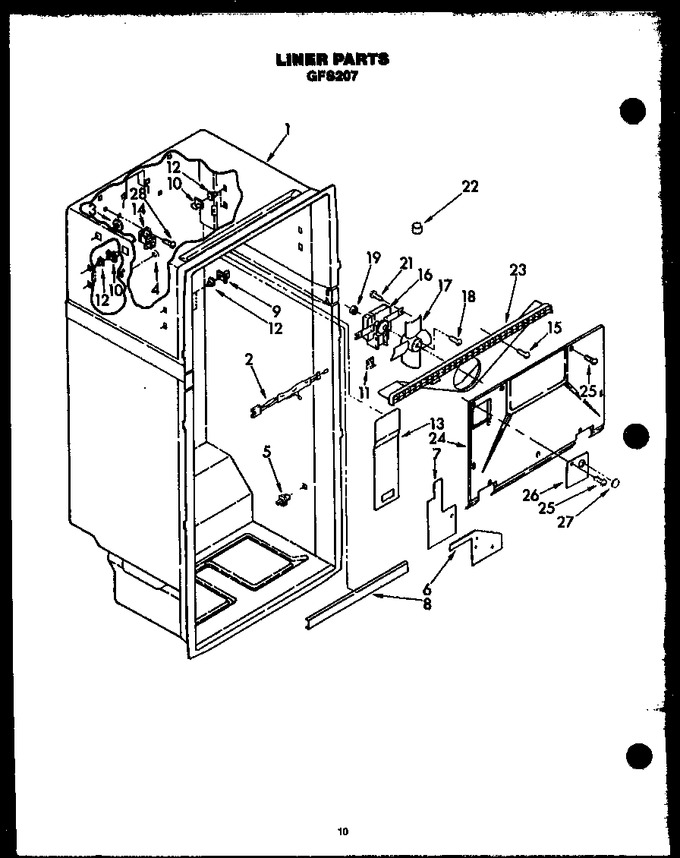

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | Y0056806 | Wiring, Fan Motor |
|
- | |||||
| 3 | Y0056655 | Hole Plug |
|
- | |||||
| 4 | Y0056655 | Hole Plug |
|
- | |||||
| 5 | Y0056928 | Stud |
|
- | |||||
| 6 | Y0056824 | Shield, Electrical |
|
- | |||||
| 7 | Y0056819 | Shield, Electrical |
|
- | |||||
| 8 | Y0056829 | Shield, Electrical |
|
- | |||||
| 9 | Y0056717 | Stud 4pc Set |
|
- | |||||
| 10 | Y0056718 | Sub 56717, Stud |
|
- | |||||
| 10 | Y0056719 | Sub 56717, Stud |
|
- | |||||
| 11 | Y0056805 | Anchor, Screw |
|
- | |||||
| 12 | 56716 | Bracket |
|
- | |||||
| 13 | Y0056772 | Cover, Air Duct |
|
- | |||||
| 14 | 0056665 | Terminal Block |
|
- | |||||
| 15 | Y0056568 | Screw |
|
- | |||||
| 16 | 482731 | Fan Motor (Replaces: Y0056801) |
|
Immediately | $ 71.15 | ||||
| 17 | 56740 | Plate,face-coin Door-l |
|
- | |||||
| 18 | Y0056511 | Screw |
|
- | |||||
| 19 | 56911 | Assy,wiring Harness |
|
- | |||||
| 21 | 56557 | Screw |
|
$ 74.99 | |||||
| 23 | Y0311182 | Scroll, Fan |
|
- | |||||
| 24 | Y0056940 | Cover, Evaporator |
|
- | |||||
| 25 | 56534 | Barrel,support |
|
- | |||||
| 26 | Y0056960 | Hole Cover, Evaporator |
|
- | |||||
| 27 | Y0056743 | Hole Plug |
|
- | |||||
| 28 | Y0056568 | Screw |
|
- |
