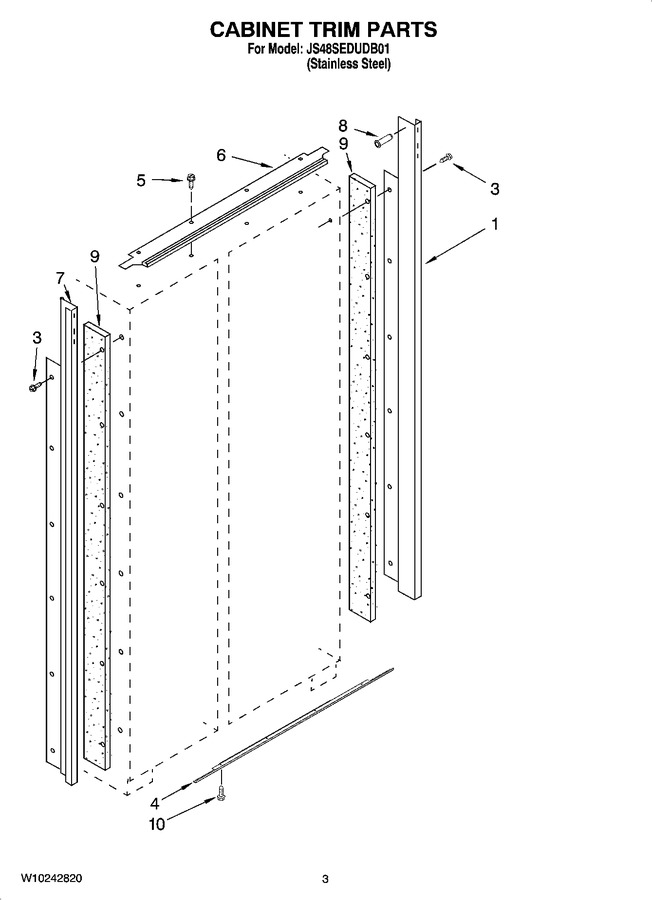

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10132472 | Cabinet, Trim (right Side) (stainless Steel) |
|
- | |||||
| 3 | WP1163283 | Screw (stainless Steel) (Replaces: 1163283) |
|
$ 6.47 | |||||
| 4 | 2316688 | Cabinet, Trim (bottom) |
|
- | |||||
| 5 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 6 | 2314018 | Cabinet, Trim Top |
|
$ 117.56 | |||||
| 7 | W10132541 | Cabinet Trim (left Side) (stainless Steel) |
|
- | |||||
| 8 | WPW10121451 | Nutsert (4) (Replaces: W10121451) |
|
Immediately | $ 6.89 | ||||
| 9 | 2005925 | Seal-trim, Side |
|
$ 83.72 | |||||
| 10 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 |
