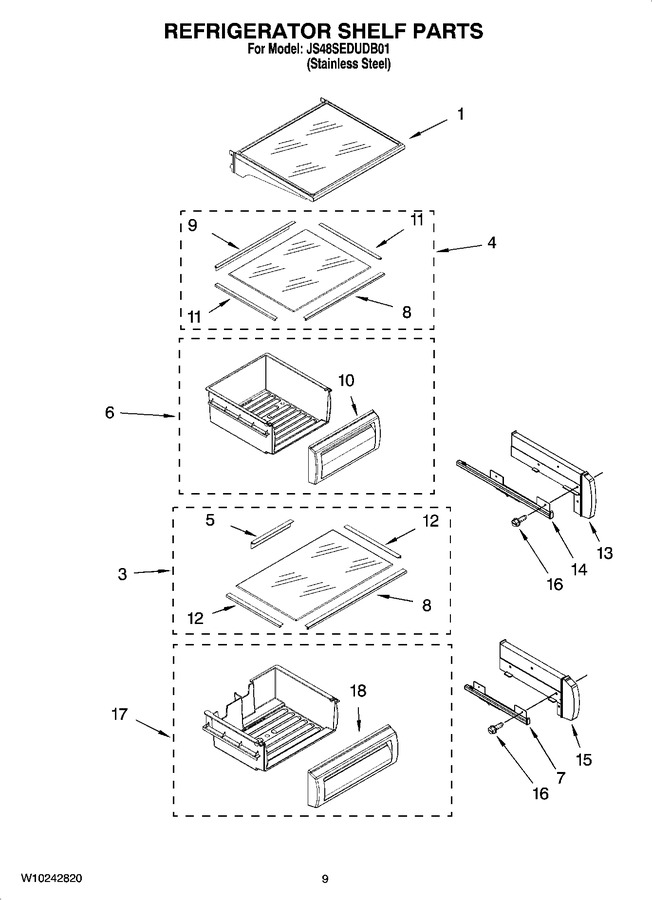

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222593		Shelf Assembly (4)   (Replaces: W10141495)				$ 274.42
3	W10151216		Assembly, Meat Pan Cover				$ 92.42
4	W10151214		Assembly, Crisper Cover				$ 196.14
5	2257583		Trim, Glass Rear		Appelez-nous	-
6	W10407625		Crisper Pan (2)   (Replaces: 2252413)				$ 152.68
7	2302954		Slide, Meat Pan (left Side)				$ 294.42
7	2302955		Slide, Meat Pan (right Side)				$ 294.16
9	2256255		Trim, Glass Rear		Appelez-nous	-
10	W10407625		Front, Crisper Pan   (Replaces: 2256249)				$ 152.68
11	2252255		Trim, Glass Side Crisper Pan		Appelez-nous	-
12	2256250		Trim, Glass Side Meat Pan		Appelez-nous	-
13	2256223		Spacer, Crisper (left Side (2))				$ 72.42
13	2256222		Spacer, Crisper (right Side (2))				$ 76.49
14	2302957		Slide, Crisper (left Side)				$ 195.71
14	2302956		Slide, Crisper (right Side)				$ 256.05
15	2256243		Spacer, Meat Pan (left Side)				$ 71.18
15	2256244		Spacer, Meat Pan (right Side)				$ 88.88
16	WP8533928		Screw (left Side- (8-18 X .750))   (Replaces: 8533928)			Immediately	$ 7.04
16	W11830745		Screw (right Side- (8-18 X 1.375))   (Replaces: 8533929)		Appelez-nous	-
17	W10407628		Pan Assembly Meat   (Replaces: 2256370)				$ 146.51
18	WP2256367		Front, Meat Pan   (Replaces: 2256367)				$ 156.65
